26
Tel: +1.314.739.9191 • +1.800.288.2726 • Fax: +1.314.739.5880 • www.tapcoinc.com
IN STOCK FOR IMMEDIATE SHIPPING
AVAILABLE THROUGH INDUSTRIAL DISTRIBUTORS, CONTRACTORS, AND ORIGINAL EQUIPMENT MANUFACTURERS
TECHNICAL INFORMATION:
48
SIZES
STYLE CC-B
Carbon steel
or
stainless steel
FEATURES:
STRAIGHT SIDES MINIMIZE DOWNLEGGING, BREAKS IN BOTTOM ALLOW BUCKET TO DISCHARGE OVER A WIDE RANGE
OF ELEVATOR SPEEDS. PRIMARILY USED for the substitution of nonmetallic buckets when heat becomes
too excessive or WHEN extremeLY sharp PRODUCTS ARE carried in the bucket elevator
AGRICULTURAL STYLE FOR HANDLING:
GRAINS, FEEDS, FERTILIZERS, SEEDS, SALT, SAND,
CHEMICALS, and FOOD PRODUCTS
STYLE:
CC-B.
DESIGN:
High speed centrifugal discharge.
material:
Carbon Steel or Stainless Steel
METHOD OF MANUFACTURE:
Fabricated (Spot welded).
CONSTRUCTION:
The CC-B style bucket utilizes a 1-piece pressed
formed design consisting of two end plates and a body. Please note
that there is no taper on the sides of the bucket. The bottom is spot
welded to the ends.
Tapco reserves the right to change bucket
construction at any time.
CONSTRUCTION OPTIONS:
Contact Tapco for recommendations
MATERIAL THICKNESS:
18 ga., 16 ga., 14 ga..
DRILLING:
No charge for standard belt drillings.
VENTING:
Venting available on request, contact Tapco for
recommendations.
USABLE CAPACITY:
Tapco recommends using 75% of gross, (100%)
capacity.
SPACING:
Minimum bucket spacing has historically been nominal
projection plus 2". Many style CC buckets, however, are being used
at projection plus 1"
,
and some even closer. For engineering purposes
Tapco recommends using nominal projection plus 2".
INTERCHANGEABILITY:
Can be intermixed with existing fabricated and
nonmetallic CC style buckets. If different weight buckets are mixed in,
some care should be taken that the leg does not become too far out
of balance. Check elevator for proper clearances. Contact Tapco for
recommendations.
INSTALLATION:
Fanged elevator bolts and nylon insert lock nuts are
recommended for pulleys 6" in diameter and over. No. 3 Eclipse slotted
head elevator bolts are recommended for pulleys under 6" in diameter.
Flat steel washers must be placed inside the bucket under the
nuts.
Check elevator for proper clearances.
CAUTION:
Welding and cutting on elevator legs without taking
proper precautions is extremely dangerous and can cause a violent
explosion.

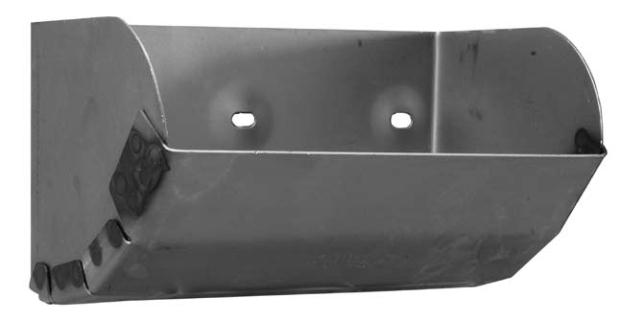

CC-B Elevator Bucket
