29
Tel: +1.314.739.9191 • +1.800.288.2726 • Fax: +1.314.739.5880 • www.tapcoinc.com

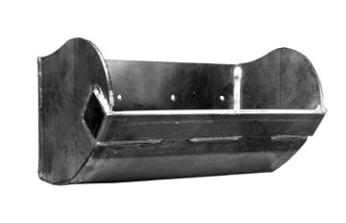

Steel
“digger” elevator buckets
A
B
C
E
E
STYLE CC BUCKETS
STYLE CC
“SUPER CAPACITY”
BUCKETS
Tapco recommends using WL (water level) + 10% for usable capacity. A gross capacity fgure is no longer provided as it is inappropriate for rating an agricultural
elevator bucket.
All sizes of Digger buckets can be manufactured in a low profle confguration for these applictions. Digger buckets are manufactured to be greater in
projection and length than nonmetellic buckets. Exact dimensions will vary by gauge of material used.
1
WL
WL
Bolt hole centers
shown are standard
and special punched.
We will punch to your
specifcations.
Size
(Nominal)
Millimeter
Size
(Nominal)
Inches
Dimensions-Actual (Inches)
Tolerance A,B & C
±
1/4”
Capacity 1 Tolerance ± 3%
Spacing
on
Belt
(Min.)
Inches
WL
WL + 10%
Length
A
Proj.
B
Depth
C
Gauge
Carbon
Gauge
Stain-
less
Hole
Shape
Punching
Center to Center
E
Number
of
Holes
Bolt
Diam. Cu. In.
Cu.
Ft.
Cu. In.
Cu.
Ft.
260-215
10 X 8
10-3/4
9
8-3/16
10
12
Round
4-1/8
3
5/16
297.0
.1719
326.7 .1891
9
280-215
11 X 8
11-3/4
9
8-3/16
10
12
Round
3
4
5/16
325.9
.1886
358.5 .2075
9
300-215
12 X 8
12-3/4
9
8-3//16
10
12
Slotted
3-1/4, 3-3/8
4
5/16
362.0
.2095
398.2
.2304
9
330-215
13 X 8
13-3/4
9
8-3/16
10
12
Round
3-5/8
4
5/16
390.2
.2258
429.2 .2484
9
350-215
14 X 8
14-3/4
9
8-3/16
10
12
Round
3
5
5/16
429.6
.2486
472.6
.2735
9
370-215
15 X 8
15-3/4
9
8-3/16
10
12
Round
3-1/4
5
5/16
458.9
.2656
504.8 .2921
9
400-215
16 X 8
16-3/4
9
8-3/16
10
12
Slotted
2-5/8, 2-7/8
6
5/16
511.1
.2958
562.2 .3254
9
450-215
18 X 8
18-3/4
9
8-13/16
10
12
Round
3-1/8
6
5/16
564.4
.3266
620.8 .3593
9
500-215
20 X 8
20-7/8
9-1/4
8-15/16
10
12
Round
3-1/2
6
5/16
644.2
.3728
708.6 .4101
9
400-250
16 X 9
16-7/8
10-1/4
10-3/16
10
12
Round
2-7/8
6
5/16
614.8
.3558
676.3 .3914
10
500-250
20 X 9
20-7/8
10-1/4
10-3/16
10
12
Round
3-1/2
6
5/16
770.5
.4459
847.6 .4905
10
500-260
20X10
21 11-1/2 11-3/8
10
12
Round
3-1/2
6
3/8 960.5 .5558 1056.6
.6115
11
Drilling-Patterns (Inches)
Holes drilled 1/16” oversize
Size
(Nominal)
Millimeter
Size
(Nominal)
Inches
Dimensions-Actual (Inches)
Tolerance A,B & C
±
1/4”
Capacity 1 Tolerance ± 3%
Spacing
on
Belt
(Min.)
Inches
WL
WL + 10%
Length
A
Proj.
B
Depth
C
Gauge
Carbon
Gauge
Stain-
less
Hole
Shape
Center to Center
E
Number
of
Holes
Bolt
Diam.
Cu. In.
Cu.
Ft.
Cu.
In.
Cu.
Ft.
80-60
3 X 2
3-1/2
2-5/8
2-1/16
12
14
Round
1-3/4
2
1/4
6.0
.0035
6.6 .0038
3
120-80
4 X 3
4-1/2
3-5/8
3-1/16
12
14
Slotted
2-1/4, 2-1/2
2
1/4
16.8
.0097
18.5 .0107
4
140-120
5 X 4
5-1/2
4-3/4
4-1/16
12
14
Round
3-3/16
2
1/4
35.8
.0207
39.4 .0228
5
160-120
6 X 4
6-1/2
4-3/4
4-1/16
12
14
Slotted
4-3/8, 4-1/2
2
1/4
43.3
.0251
47.6
.0276
5
180-120
7 X 4
7-1/2
4-3/4
4-1/16
12
14
Slotted
2-11/16, 2-5/8
3
1/4
49.7
.0288
54.7 .0316
5
160-140
6 X 5
6-5/8
5-5/8
5-1/16
10
14
Slotted
4-3/8, 4-1/2
2
1/4
68.3
.0395
75.1 .0435
6
180-140
7 X 5
7-5/8
5-5/8
5-1/16
10
14
Slotted
2-5/8, 2-11/16
3
1/4
75.8
.0439
83.4
.0483
6
200-140
8 X 5
8-5/8
5-5/8
5-1/16
10
14
Round
3-1/16
3
1/4
85.4
.0494
93.9 .0544
6
230-140
9 X 5
9-5/8
5-5/8
5-1/16
10
14
Slotted
3-1/4, 3-1/2, 3-5/8
3
*
1/4
97.9
.0567
107.7 .0623
6
260-140
10 X 5
10-5/8
5-5/8
5-1/16
10
14
Slotted
4, 4-1/8
3
1/4
113.5
.0657
124.9
.0723
6
280-140
11 X 5
11-5/8
5-5/8
5-1/16
10
14
Slotted
3, 3-1/8
4
1/4
127.2
.0736 139.9
.0766
6
300-140
12 X 5
12-5/8
5-5/8
5-1/16
10
14
Round
3-3/8
4
1/4
143.1
.0828
157.4 .0911
6
200-160
8 X 6
8-5/8
6-7/8
6-1/16
10
14
Slotted
2-11/16, 3-1/16
3
1/4
124.5
.0720
137.0 .0793
7
230-160
9 X 6
9-5/8
6-7/8
6-1/16
10
14
Slotted
3-1/2, 3-5/8
3
1/4
135.9
.0786
149.5
.0865
7
260-160
10 X 6
10-5/8
6-7/8
6-1/16
10
14
Slotted
4, 4-1/8
3
1/4
150.4
.0870
165.4
.0957
7
280-160
11 X 6
11-5/8
6-7/8
6-1/16
10
14
Slotted
2-7/8, 3
4
1/4
173.4
.1003
190.7
.1104
7
300-160
12 X 6
12-5/8
6-7/8
6-1/16
10
14
Slotted
3-1/4, 3-3/8
4
1/4
185.4
.1073
203.9 .1180
7
330-160
13 X 6
13-5/8
6-7/8
6-1/16
10
14
Round
3-5/8
4
1/4
203.8
.1179
224.2 .1297
7
350-160
14 X 6
14-1/4
6-7/8
5-7/8
10
14
Round
3
5
1/4
198.3
.1148
218.1 .1262
7
260-180
10 X 7
10-5/8
8
7-1/16
10
14
Slotted
4, 4-1/8
3
5/16
219.4
.1270 241.3 .1397
7
280-180
11 X 7
11-5/8
8
7-1/16
10
14
Round
3
4
5/16
234.2
.1355
257.6 .1491
8
300-180
12 X 7
12-5/8
8
7-1/16
10
14
Slotted
3-1/4, 3-3/8
4
5/16
248.2
.1436
273.0
.1580
8
330-180
13 X 7
13-5/8
8
7-1/16
10
14
Round
3-5/8
4
5/16
284.4
.1646
312.8
.1810
8
350-180
14 X 7
14-5/8
8
7-1/16
10
14
Round
3
5
5/16
301.9
.1747
332.1 .1922
8
370-180
15 X 7
15-5/8
8
7-1/16
10
14
Round
3-1/4
5
5/16
331.4
.1918
364.5
.2110
8
400-180
16 X 7
16-5/8
8
7-1/16
10
14
Slotted
2-5/8, 2-7/8
6
5/16
346.5
.2005
381.2 .2206
8
450-180
18 X 7
18-5/8
8
7-1/16
10
14
Round
3-1/8
6
5/16
396.7
.2296
436.4
.2525
8
500-180
20 X 7
20-5/8
8
7-1/16
10
14
Round
3-1/2
6
5/16
433.3
.2508 476.6
.2758
8
Drilling-Patterns (Inches)
Holes drilled 1/16” oversize
* Two extra holes on 3-1/2 centers are provided to accommodate Universal Industries standard four hole pattern
End View
Back View
