APPLICATION:
CONSTRUCTION
TUBE:
COVER:
REINFORCEMENT:
TEMPERATURE:
PACKAGING:
BRANDING:
COUPLINGS:
NON-STOCK/SIZES:
A heavy-duty, wrapped finish, single wire-braid or spiral ply wire air hose for higher
pressure service in severe industrial applications including service in mines, quarries and
construction jobs.
Black Nitrile synthetic rubber, RMA Class B
Yellow Chemivic™ synthetic rubber (wrapped impression), RMA Class B, MSHA approved
Braided (1) steel wire (1/2” - 11/2”) Spiral-plied steel wire (2” - 4”)
-40°F to 200°F (-40°C to 93°C)
50’ and 100’ length, coiled
Example: Goodyear® Steel Air 500 psi 3.4 MPA 2” 50.8 mm.
Contact fitting manufacturer for proper fitting recommendation and coupling procedure.
Refer to page 303 for special production run minimum requirements.

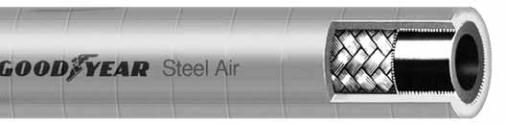

STEEL AIR
ID NOM. OD MAX. WP WEIGHT
in. mm. in. mm. psi Mpa lb./ft. kg./m.
ID NOM. OD MAX. WP WEIGHT
in. mm. in. mm. psi Mpa lb./ft. kg./m.
STEEL AIR
STEEL AIR
1/2 12.7 0.91 23.1 750 5.17 0.34 0.51
3/4 19.1 1.14 29.0 750 5.17 0.45 0.67
1 25.4 1.45 36.6 750 5.17 0.66 1.00
1¼ 31.8 1.81 46.0 500 3.45 0.98 1.46
1½ 38.1 1.98 50.2 500 3.45 0.97 1.44
2 50.8 2.66 67.6 500 3.45 1.59 2.36
2½ 63.5 3.33 84.6 500 3.45 2.63 3.91
3 76.2 3.81 96.8 500 3.45 3.07 4.57
4 101.6 4.90 124.5 500 3.45 4.36 6.49
Also available with Versigard® synthetic rubber tube and cover where superior heat resistance is more important than oil resistance.
ORDER CODES:
ORDER CODES:
549-209 (2"- 4")
539-159 (1/2" - 1 1/2")
