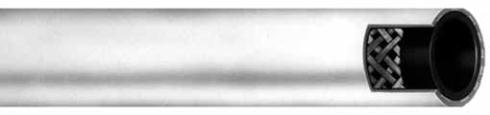

SUPER ORTAC
®
APPLICATION:
CONSTRUCTION
TUBE:
COVER:
REINFORCEMENT:
TEMPERATURE:
PACKAGING:
BRANDING:
COUPLINGS:
NON-STOCK/SIZES:
ORDER CODES:
For heavy-duty service in handling air, water, oil, petroleum-based solvents and agricultural spray
solutions.
Nitrile synthetic rubber, RMA Class B (Medium Oil Resistance)
Yellow Chemivic
™
synthetic rubber, RMA Class B (Medium Oil Resistance), smooth finish,
pinpricked, MSHA approved
Braided (1) steel wire
-20°F to 200°F (-29°C to 93°C)
1/2”– 1”
500’ reels, maximum 3 pieces, 50’ increments
1¼”– 1½” 300’ reels, maximum 3 pieces, 50’ increments
2”
100’–200’ per carton, maximum 3 pieces, 50’ increments
Also stocked in cut and coiled 50’ lengths, 2 pieces per carton, all sizes.
Example: Goodyear
®
1” Super Ortac
®
1000 psi. Fire Resistant USMSHA IC-1 1/9. Made in USA.
Contact fitting manufacturer for proper fitting recommendation and coupling procedure.
Refer to page 303 for special production run minimum requirements.
539-152
ID
NOM. OD
MAX. WP
WEIGHT
in.
mm.
in.
mm.
psi
Mpa
lb./ft.
kg./m.
SUPER ORTAC
®
1/2
12.7
0.91
23.1
1000
6.9
0.34
0.51
3/4
19.1
1.14
29.0
1000
6.9
0.44
0.65
1
25.4
1.45
36.8
1000
6.9
0.63
0.94
1¼
31.8
1.81
46.0
1000
6.9
1.05
1.56
1½
38.1
1.98
50.8
1000
6.9
1.08
1.61
2
50.8
2.55
64.3
1000
6.9
1.57
2.34
Product Specifications
