APPLICATION:
CONSTRUCTION
TUBE:
COVER:
REINFORCEMENT:
TEMPERATURE:
PACKAGING:
COUPLINGS:
BRANDING:
NON-STOCK/SIZES:
ORDER CODES:
An economical air and water hose, Horizon® is for a wide range of industrial, construction
and agricultural applications. Available in 200, 250, and 300 PSI working pressures.
Versigard® synthetic rubber, RMA Class C (Limited Oil Resistance)
Black, Red, Yellow, Green or Blue Versigard ® synthetic rubber
Spiral synthetic yarn, 2” is braided
-40°F to 190°F (-40°C to 88°C)
3/16”–3/4” 500’ reels, maximum 3 pieces, 50’ increments
1” 450’ reels, maximum 3 pieces, 50’ increments
1¼” 400’ reels, maximum 3 pieces, 50’ increments
1½” 300’ reels, maximum 3 pieces, 50’ increments
2” 200’, cartons, maximum 3 pieces, 50’ increments
Coupled assemblies available in 1/4”, 3/8”, 1/2”, and 3/4” in red.
Contact fitting manufacturer for proper fitting recommendation and coupling procedure.
Example: 1/2” Horizon® Goodyear® 300 psi WP.
Refer to page 303 for special production run minimum requirements.
See next page.

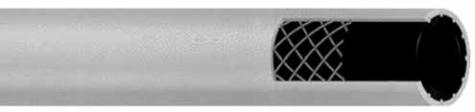

HORIZON®
Product Specifications
Verisgard ® is a registered tradmark of The Goodyear Tire & Rubber Company.
