AIR & MULTIPURPOSE
14
AIR &
MULTIPURPOSE
General Purpose
Heavy Duty
Push-on
CHEMICAL
TRANSFER
CLEANING
EQUIPMENT
FOOD
Transfer
Washdown
MARINE
MATERIAL
HANDLING
Abrasives
Bulk Transfer
Cement & Concrete
MINING
PETROLEUM
Aircraft Fueling
Dispensing
Dock
Transfer
SPRAY
STEAM
VACUUM
VEYANCE
WATER
Discharge
Suction &
Discharge
Washdown
WELDING
COUPLING
SYSTEMS
APPENDIX
APPLICATION:
CONSTRUCTION
TUBE:
COVER:
REINFORCEMENT:
TEMPERATURE:
PACKAGING:
BRANDING:
COUPLINGS:
NON-STOCK/SIZES:
ORDER CODES:

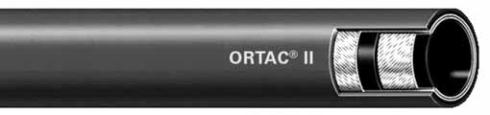

Ortac® (Oil Resistant Tube and Cover) is our most popular premium-quality multipurpose
hose. Used in the most abusive industrial applications, Ortac will handle air, oil, water, kero-
sene and some chemicals. Nonconductive, minimum electrical resistance greater than one
(1) megohm per inch of hose length; at 1000 Volts DC. Available in 250, 300 and 400 PSI
working pressures. NOTE: Ortac 400 Yellow is USMSHA approved.
Nitrile synthetic rubber, RMA Class A (high oil resistance)
Red or Yellow Carbryn™ synthetic rubber, RMA Class A (high oil resistance)
Spiral synthetic yarn, 2” is braided
-20°F to 190°F (-29°C to 88°C)
3/16”–3/4” 500’ reels, maximum 3 pieces, 50’ increments
1” 450’ reels, maximum 3 pieces, 50’ increments
1¼” 400’ reels, maximum 3 pieces, 50’ increments
1½” 300’ reels, maximum 3 pieces, 50’ increments
2” 200’ cartons, maximum 3 pieces, 50’ increments
Example: 11/2” (38.1 mm) Ortac ® 300 psi WP. Made in USA Goodyear®.
Contact fitting manufacturer for proper fitting recommendation and coupling procedure.
Refer to page 303 for special production run minimum requirements.
See next page.
ORTAC ®
Product Specifications
