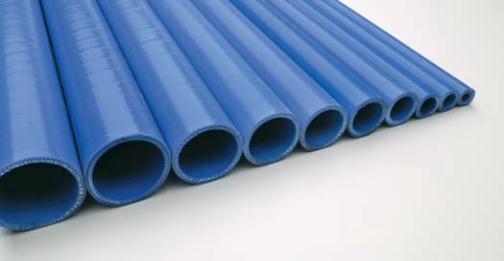

VENA SIL 200 / VENA SIL 240
The VENA SIL 200/240 product line is made with Vinyl Methyl Quality (VMQ) silicone with a plain outer and inner appearance.
Temperature range is -76ºF to +356ºF.
02
SILICONE HOSE WITH POLYESTER REINFORCEMENT FOR
HEATING AND COOLING EQUIPMENT
SIL 200: 3 ply polyester reinforcement
(standard for ID < 2.0”) with wall thickness of 4.2mm.
SIL 240: 4 ply polyester reinforcement
(standard for ID > 2.0”) with wall thickness of 5.2mm.
Standard Length: From 1 to 4 m (3’ to 13’). Can be cut to smaller lengths upon request.
Applications: Suitable for use in straight lengths, with no bending requirements.
Other dimensions are available by special order.
STRAIGHT HOSE
GENERAL CHARACTERISTICS:
Inner Diameter
Working Pressure
Bursting Pressure
1/4"
5/16”
3/8”
1/2"
5/8”
3/4”
7/8”
1”
1 1/8”
1 3/16”
1 1/4"
1 3/8”
1 1/2"
1 9/16”
1 3/4"
1 7/8”
2”
2 1/8”
2 1/4"
2 3/8”
2 1/2"
2 5/8”
2 3/4"
3”
3 1/8”
3 1/2"
4”
4 1/8”
4 1/3”
4 1/2"
4 3/4"
5”
6”
8”
214
172
146
120
103
90
80
72
67
62
59
55
52
50
45
43
40
39
37
36
34
33
32
29
29
26
23
307
249
213
177
152
134
120
110
101
97
92
87
81
78
72
70
66
62
61
59
56
55
52
49
47
43
40
37
34
32
29
27
24
21
14.8
11.9
10.1
8.3
7.1
6.2
5.5
5.0
4.6
4.3
4.1
3.8
3.6
3.4
3.1
3.0
2.8
2.7
2.6
2.5
2.3
2.3
2.2
2.0
2.0
1.8
1.6
21.2
17.2
14.7
12.2
10.5
9.2
8.3
7.6
7.0
6.7
6.3
6.0
5.6
5.4
5.0
4.8
4.6
4.3
4.2
4.1
3.9
3.8
3.6
3.4
3.2
3.0
2.8
2.6
2.3
2.2
2.0
1.9
1.7
1.4
642
517
438
360
307
270
240
217
200
188
180
176
156
150
136
130
123
116
113
109
104
101
95
88
85
76
69
920
749
638
529
455
403
362
330
304
290
277
259
245
236
217
207
198
187
182
177
169
166
158
149
143
132
121
115
105
99
90
84
74
65
44.3
35.6
30.2
24.8
21.2
18.6
16.5
15.0
13.8
13.0
12.4
12.1
10.8
10.3
9.4
9.0
8.5
8.0
7.8
7.5
7.2
7.0
6.5
6.1
5.9
5.2
4.8
63.4
51.6
44.0
36.5
31.4
27.8
25.0
22.8
21.0
20.0
19.1
17.9
16.9
16.3
15.0
14.3
13.7
12.9
12.5
12.2
11.7
11.4
10.9
10.3
9.9
9.1
8.3
7.9
7.3
6.8
6.2
5.8
5.1
4.5
(1) NOMEX is a registered trademark of Dupont.
inches
6
8
10
13
16
19
22
25
28
30
32
35
38
40
45
48
51
55
57
60
63
67
70
76
80
90
102
105
110
114
121
127
152
204
mm
psi
Sil200
psi
Sil240
bar
Sil200
bar
Sil240
psi
Sil200
psi
Sil240
bar
Sil200
bar
Sil240
Other types of textile reinforcement, such as NOMEX (1)
and fiberglass, are available upon request.
