TURBOLOADER
CORRUGATED SILICONE HOSE FOR
TURBOCHARGER SYSTEMS
External material:
Silicone VMQ (Vinyl Methyl Quality).
Internal material:
Silicone FVMQ (Fluor Vinyl Methyl Quality).
Textile reinforcement: NOMEX
Temperature range: - 76° to + 392°F
(up to 428°F for short periods of time).
Standard Wall thickness: 3.7mm.
Standard length: (See table below).
Apperance: Corrugated outer and inner
appearance.
Application: Specifically used in turbocharger
systems for industrial vehicles, due to its
high capacity to withstand hydrocarbons
and/or oil particles in cooled, pressurized air.
Options: Also available without the FVMQ
(Fluor Vinyl Methyl Quality) silicone. The
standard VMQ (Vinyl Methyl Quality) silicone
is used instead.

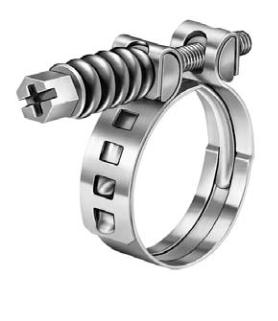

VENAIR’s Self-Tensioning Stepless Screw
Clamps are size adjustable and were
specifically developed for use with silicone
hoses in motor vehicle cooling systems.
The narrow width of these clamps in
comparison with alternative clamps of similar
design, coupled with the low installation
torque, combine to ensure a precisely defined
clamping pressure on the hose.
Material:
These Self-Tensioning Stepless Screw Clamps
are made from austenitic stainless steel.
The primary material employed is a nickel
alloy designated DIN 1.4301 / UNS
S30400, and contains ca. 18% chromium
and ca. 8% nickel. This alloy acquires
additional strength through cold working in
the course of strip and clamp manufacture.
Design:
Material is 9 mm wide and 0.6 mm
thick, ensuring optimum sealing
capabilities with silicone hoses, while
taking into account the necessary
radial force, the compressibility of
the hose, the sealing/ retaining
properties, and the environmental
conditions.
These Self-Tensioning Stepless Screw
Clamps are available for our entire
range of industrial silicone hoses,
from inner diameters as small as 1/4
“ to as large as 8”.
Features:
Compression spring reacts to diameter
changes caused by thermal expansion
and contraction, ensuring continual all-
season sealing and a permanent system
against leakage.
360º stepless design- no steps or
overlaps around the internal
circumference.
Specially formed strip edges prevent
damage to adjacent hose.
Reusable.
Narrow band width provides localized
clamping force.
Conforms to: SAE J1508 Type SSPC,
TMC RP332 Type SSPC.
SELF-TENSIONING STEPLESS SCREW CLAMPS
2”
2”
2 3/8”
2 3/8”
2 1/2”
2 3/4"
2 3/4"
3”
3”
3 1/8”
3 1/8”
3 1/4”
3 1/4”
3 1/2"
3 1/2"
3 1/2"
3 1/2"
3 1/2"
3 3/4"
3 3/4"
4”
4”
4”
4”
4”
4 1/2"
51
51
60
60
63
70
70
76
76
80
80
82
82
90
90
90
90
90
95
95
102
102
102
102
102
115
Inner Diameter
inches mm
2
4
2
4
3
2
4
2
4
3
6
3
6
1
2
4
5
6
4
6
1
2
4
5
6
3
Number of
Humps
3
5
3
5
4
3
5
3
5
4
7
4
7
2
3
5
6
7
5
7
2
3
5
6
7
4
Number of
Rings
2 1/2”
4 1/2"
2 1/2"
4 1/2"
3 1/2"
2 1/2"
4 1/2"
2 1/2"
4 1/2"
3 1/2"
6 3/4"
3 1/2"
6 3/4"
1 1/2"
2 1/2"
4 1/2"
5 1/2"
6 3/4"
5’’
6 3/4"
1 1/2"
2 1/2”
4 1/2"
5 1/2"
6 3/4"
3 1/2"
63
115
63
115
90
63
115
63
115
90
171
90
171
38
63
115
140
171
127
171
38
63
115
140
171
90

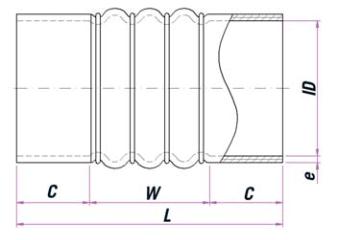

Total Length
of Humps (W)
inches mm
1 7/8’’
1 5/8’’
1 7/8’’
1 5/8’’
2 1/4"
1 7/8’’
1 5/8’’
1 7/8’’
1 5/8’’
2 1/4"
2 3/4"
2 1/4"
2 3/4"
1 1/4"
1 7/8’’
1 7/8’’
2 1/4"
2 3/4"
1 9/16’’
2 3/4"
1 1/4"
1 7/8’’
1 7/8’’
2 1/4"
2 3/4"
2 1/4"
48
42
48
42
57
48
42
48
42
57
70
57
70
32
48
48
57
70
40
70
32
48
48
57
70
57
Cuff length (C)
inches mm
6 1/4"
8’’
6 1/4"
8’’
8’’
6 1/4"
8’’
6 1/4"
8’’
8’’
12’’
8’’
12’’
4’’
6 1/4"
8 1/4"
10’’
12’’
8 1/4"
12’’
4’’
6 1/4"
8 1/4"
10’’
12’’
8’’
158
204
158
204
204
158
204
158
204
204
306
204
306
102
158
210
255
306
210
306
102
158
210
255
306
204
Total Length
inches mm
Available TURBOLOADERS
(consult for other dimens
ions)
