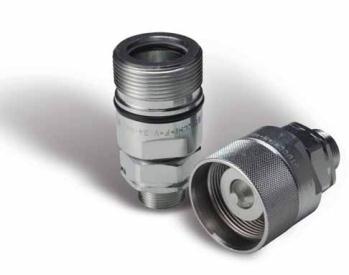

VD Series
Screw Poppet Interchange
Series: VD
European Screw Coupler
Available from size 1/4 to 1 1/4 inch to cover the various fields
of hydraulic applications. The series VD couplings are mostly
used in mobile crane, vibratory hammer, oil patch and industrial plant
applications.
Screw-on system ensures connection with some residual pressure
- Friction ring to prevent accidental disconnection
- Hardened valve bodies for impulse applications
- Interchangeable with the German market
- O-ring connected marker is highly visible during connection
and helps to keep containments out of the threads
while connected
Stucchi: VD Series
Overview
Due to their rugged design, VD
series couplings are particularly
well suited for heavy-duty service
conditions making them one of
the most popular designs in
Europe. The VD coupler is a
durable product using a poppet
style valve for the sealing
mechanism and threads as
the mechanical connection.
Highly versatile design is ideally
suited for hydraulic systems
experiencing pressure spikes
or impulses.
Technical Characteristics
- Coupling body:
zinc plated steel
- Nipple is zinc plated
hardened steel
- Seals: Nitrile
- Anti-extrusion rings
are Teflon
- Internal components
purposely designed to
reduce turbulence
- Wide range of ports
on request
- Metal shoulder to protect
the o-ring seal on
female coupling
- Screw-on system
ensures connection under
residual pressure
COMING SOON
