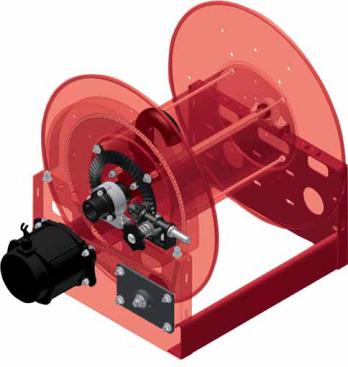

Full Flow Design
The goose neck is contoured
to match the drum diameter,
which allows smooth hose
wrapping and unimpeded flow.
Long Service Life
The spool axial is supported by
independent self-aligning bearing.
Trouble-Free Rewinding
Chain and sprocket drive ensures
smooth and consistent operation.
Ultimate Corrosion
Resistance
Individually powder coated
components insure
maximum coverage and
resistance to corrosion.
Stainless steel fasteners
are standard.
Precise Rigid
Construction
Proprietary unitized tie
rods are zinc plated
offering greater strength
and resistance to
vibration and corrosion.
Free Rotation
While Pressurized
The swing joint and spindle
allows reel to freely rotate
while fluid is pressurized.
Adjustable Hose
Tension
The brake can be
adjusted to suit the
application
requirements.
Reelcraft’s Engineered
Product Solutions
Long Service Life
Swivel incorporates a
permanently lubricated
ball bearing.
Nordic Series
Military Vibration
for Truck
Transport test.
MIL-STD-810F
500,000 mile
equivalent
Drive Options Series
EP
12 VDC Electric
2405
EA
115 VAC Electric
3905
EJ
24 VDC Electric
3705
HD
Hydraulic
5905
AR
6 AM Air
BC
Bevel Crank
HC
Hand Crank
S
Storage
CR
Cable Reel
Exp. Proof motors are
standard
Material Options/
Drive Size
1/2” Pitch Chain ###5
5/8” Pitch Chain ###6
3/4” Pitch Chain ###7
Gear Driven ###9
Alum. Frame & Spool ##5#
S.S. Frame & Spool ##9#
Sewer Cleaning Reel ##15
Twin Hose ####T
Head
Dia.
19
21
25
28
31
36
39
46
Drum
Length
10-36”
in 2”
increments
Thread
Size
50
1/2”
75
3/4”
10
1”
12
1 1/4”
15
1 1/2”
20
2”
25
2 1/2”
30
3”
40
4”
Thread Type
F
Female Outlet
FF
Female In/Out
M
Male Outlet
MM
Male In/Out
V
Victaulic
Thread
Style
NP
NPT
BP
BSPP
BT
BSPT
Fluid Path
Material
A
Aluminum
D
Ductile Iron
S
Stainless
B
Bronze
Pressure
LP
0-600
1K
600-1000
3K
1000-3000
5K
3001-5000
6K
5001-6000
10K
10,000
15K
15,000
Fluid Path
Location/Direction
1
Left Hand Top Wind
2
Left Hand Bottom Wind
3
Right Hand Top Wind
4
Right Hand Bottom Wind
Color
Code
R
Red
B
Black
W
White
G
Grey
Additional Options
Idler
Chain Guard
Roller Bracket (Top)
Roller Bracket (Bottom)
Inboard Motor
Brake
Auxiliary Bevel Crank
Hose Boss (Guide)
Junction Box
Explosion Proof Switch
Solenoid
Circuit Breaker
Control Valve
-
-
-
Part No. Example:
EP3905-23-28-15FFNPALP21-R00
EP
(12VDC Electric Explosion Proof Motor)
3905
(Series 3905 Hose Reel)
-23
(23” Head Dia.)
-28
(28” Drum Length)
-15
(1-1/2” Thread Size)
FF
(Female In/Out Thread Type)
NP
(NPT Thread Style)
A
(Aluminum Fluid Path)
LP
(0-600 PSI)
2
(90° Inlet)
1
(Left Hand Top Wind Fluid Path Location/Direction)
R
(Red)
-
NOTE:
Not all options available in every combination. Please contact manufacturer for price and availability.
