Military Specification Compliance
MIL-C-27487
Military Standard Number - Summary Index
CouplingType Item Code Class 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4 6
A MS 27020 Aluminum 1 -3 -5 -7 -9 -11 -13 -15 -17 -19
Brass 2 -4 -6 -8 -10 -12 -14 -16 -18 -20
B MS 27026 Aluminum 1 -3 -5 -7 -9 -11 -13 -15 -17 -19
Brass 2 -4 -6 -8 -10 -12 -14 -16 -18 -20
C MS 27025 Aluminum 1 -3 -5 -7 -9 -11 -13 -15 -17 -21
Brass 2 -4 -6 -8 -10 -12 -14 -16 -18 -22
D MS 27024 Aluminum 1 -3 -5 -7 -9 -11 -13 -15 -17 -19
Brass 2 -4 -6 -8 -10 -12 -14 -16 -18 -20
E MS 27021 Aluminum 1 -3 -5 -7 -9 -11 -13 -15 -17 -21
Brass 2 -4 -6 -8 -10 -12 -14 -16 -18 -22
F MS 27022 Aluminum 1 -3 -5 -7 -9 -11 -13 -15 -17 -19
Brass 2 -4 -6 -8 -10 -12 -14 -16 -18 -20
D.C. MS 27028 Aluminum 1 -3 -5 -7 -9 -11 -13 -15 -17 -19
Brass 2 -4 -6 -8 -10 -12 -14 -16 -18 -20
D.P. MS 27029 Aluminum 1 -3 -5 -7 -9 -11 -13 -15 -17 -19
Brass 2 -4 -6 -8 -10 -12 -14 -16 -18 -20
Gasket MS 27030 -2 -3 -4 -5 -6 -7 -8 -9 -10
EVER-TITE® Brass Cam and Groove Couplings are available as compliant with military
specifications.
EVER-TITE® Aluminum Cam and Groove Couplings can be ordered as compliant with
military specifications by specifying anodized parts identified by military color
number per MIL-A-8625.
Special Military Couplings

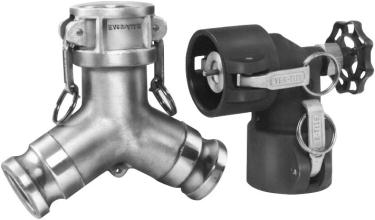

Many different configurations of adapters and couplers are
available. Female wyes with adapters/couplers and double
female couplers with shut-off valve #77 are illustrated as
representative of the configurations that are available. Please
inquire regarding any specific requirement.
Note: Specify military color number per MIL-A-8625
Cam and Groove Couplings
10
