C-10
AGRI-GARD

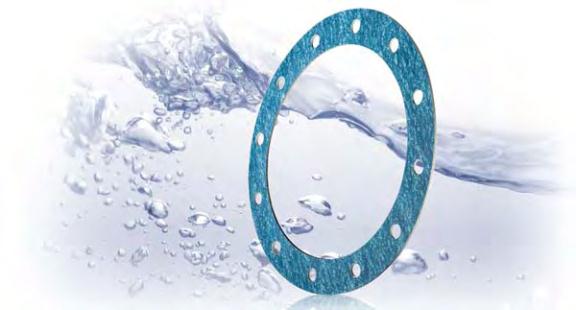

Style 2676 MULTI-SWELL
Style 3760
Benefits
Notes:
1
Based on ANSI RF flanges at our
preferred torque. When approaching
maximum pressure, continuous operat-
ing temperature, minimum temperature
or 50% of maximum PxT, consult Garlock
Engineering.
2
ASTM F37B Sealability, milliliters/hour
(1/32" thick)
ASTM Fuel A (isooctane):
Gasket load = 500 psi (3.5 N/mm
2
),
Internal pressure = 9.8 psig (0.7 bar)
Nitrogen:
Gasket load = 3,000 psi (20.7 N/mm
2
),
Internal pressure = 30 psig (2 bar)
3
DIN 3535 Part 4 Gas Permeability,
cc/min. (1/16" thick)
Nitrogen:
Gasket load = 4,640 psi (32 N/mm
2
),
Internal pressure = 580 psig (40 bar)
4
Saturated steam service guidelines:
• For optimal performance, use thinner
gaskets when possible.
• Minimum recommended assembly
stress = 4,800 psi.
• Preferred assembly stress = 6,000 psi
to 10,000 psi.
• Retorque the bolts/studs prior to pres-
surizing the assembly. Never
retorque a pressurized assembly.
• If the service is superheated steam,
contact Applications Engineering.
Benefits
Ideal for ethanol industry
¦
Designed to excel in saturated steam, water, oils,
fuels—over 90% of industry applications
High performance
¦
Inorganic fiber gasketing offers excellent thermal sta-
bility with minimal weight loss
¦
Reduced creep relaxation and improved torque reten-
tion ensure optimal sealability
This is a general guide and should not be the sole
means of selecting or rejecting this material. ASTM
test results in accordance with ASTM F-104;
properties based on 1/32" (0.8mm) sheet thickness.
* Values do not constitute specification limits
Typical Physical Properties*
2676
3760
Color
Grey
Blue/off-white
Binder
Nitrile (NBR)
Proprietary
Temperature
1
Minimum
-100°F (-75°C)
-40°F (-40°C)
Continuous max.
+550°F (+290°C) +400°F (+205°C)
Pressure, max
.
1
psig (bar)
1,200 (83)
500 (35)
P x T, max
.
1
(psig x °F)
1/32", 1/16"
400,000
150,000
(bar x °C)
(0.8mm, 1.6 mm)
(14,000)
(5,100)
1/8"
275,000
100,000
(3.2 mm)
(9,600)
(3,400)
Sealability
(ASTM F37B)
2
ASTM Fuel A
ml/hr
0.2
0.15
Nitrogen
ml/hr
1.0
0.20
Gas Permeability
(DIN 3535 Part 4)
3
cc/min.
0.05
Creep Relaxation
(ASTM F38)
%
15
30
Compressibility Range
(ASTM F36)
%
7-17
15-30
Recovery
(ASTM F36)
%
>50
40
Tensile Strength
across grain
(ASTM F152)
psi (N/mm
2
)
1,500 (10)
1,000 (6.9)
Fluid Resistance
(ASTM F146 @ 5 hours)
ASTM #1 Oil
at +300°F (+150°C)
Thickness increase, Typ., %
=15
Weight Increase, Typ., %
30
ASTM IRM #903 Oil
at +300°F (+150°C)
Thickness increase, Typ., %
75
Weight Increase, Typ., %
85
Dist. H
2
O
+70-85°F (20-30°C)
Thickness increase, Typ., %
40
Density
1/32" (0.8 mm) thk
lbs/ft
3
(g/cm
3
)
110 (1.76)
85 (1.36)
Ultra-tight seal in water and oil applications
¦
Proprietary formulation creates additional gasket load
when the gasket comes in contact with oil or water
¦
Twice as compressible as standard fiber gaskets -
conforms to irregular surfaces
Versatile
¦
Stops leakage in:
• Gear boxes
• Compressors
• Pumps
• Lube oil systems
• Access covers
Thickness measured with a 9 oz. weight be-
fore immersion and 3 oz. after immersion.
LEAK-GARD™ Style 3750 is also
available exclusively for oil-swell
applications.
