Style G-9900 Hi-Temp Styles
9800 / 9850
Benefits
Tough and reliable
■ Graphite fiber gasketing withstands extreme tempera-
tures and pressures, as well as many chemicals
■ Passed Garlock Fire tests, and is ABS Fire Safe Type
Approved
■ Meets Navy Spec STR 508
Tighter seal
■ Maintains superior seal during thermal cycling, even in
saturated steam and hot oils
■ Significantly reduces emissions to meet stringent
Clean Air Act requirements
Easy to install
■ Patented* graphite fiber sheet is easier to handle and
cut than exfoliated graphite sheets or metal-inserted
gasket material
* Patent #4,859,526
Note: For nuclear orders, specify Style G-9920.
Media
G-9900: Saturated steam, water, inert gases,
aliphatic hydrocarbons, oils, gasoline,
and most refrigerants
9800: Saturated steam †, water, and inert gases
9850: Water, saturated steam †, aliphatic hydro-
carbons, oils, gasoline, most refrigerants

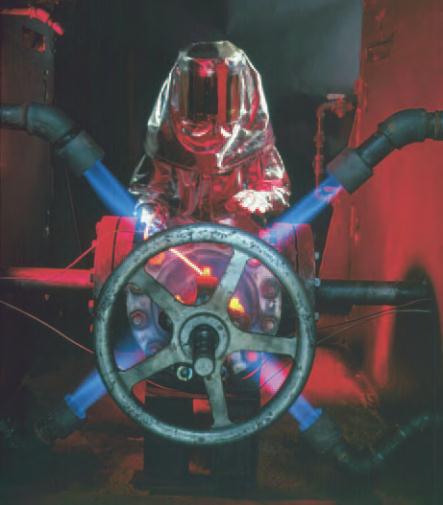

At the Garlock on-site fire test facility, valves and
sealing materials have been tested for functionality in
the most extreme applications. G-9900, 9800, 9850,
ST-706 and IFG® 5500 meet these stringent fire test
standards.
Benefits
Heat and pressure resistant
■ Carbon fiber gasketing excels in harshest conditions—
intense heat, high pressure, saturated steam and hot
oils
■ Laboratory-tested for fire safety
Tighter seal
■ Maintains effective seal during pressure and tempera-
ture fluctuations
■ Superior torque retention lowers leakage rates and
reduces maintenance time
Convenient
■ Flexible material is easy to handle and cut
■ Sheet sizes to 150" x 150" (3.8 m x 3.8 m) minimize
waste and inventory costs
Gaskets
Garlock
Questions? Call Gasket
Applications Engineering
at 1-800-448-6688.
®
† Above 150 psig, contact Engineering.
� � � � � � � � � � � � �
� � � � � � � � � � � � �
� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �
