22
Individual Osborne Arch Punches
Individual punches as described in Style 14C14 on page 20. Larger sign
and millimeter sizes available on special order. Sizes larger than 2 1/4"
made with properly engineered two piece welded construction. Millimeter
sizes in green enamel.
STYLE 14C149
Diameter
Approx.
Part
(inches) Weight (lbs) (oz)
Number
3/16"
-
3 14C1490187
1/4"
-
3 14C1490250
5/16"
-
3 14C1490312
3/8"
-
5 14C1490375
7/16"
-
6 14C1490437
1/2"
-
7 14C1490500
9/16"
-
8 14C1490562
5/8"
-
9 14C1490625
11/16"
-
8 14C1490687
3/4"
-
12 14C1490750
13/16"
-
12 14C1490812
7/8"
-
12 14C1490875
15/16"
1
-
14C1490937
1"
1
-
14C1491000
1 1/16"
1
-
14C1491062
1 1/8"
1
2 14C1491125
1 3/16"
1
-
14C1491187
1 1/4"
1
6 14C1491250
1 5/16"
1
6 14C1491312
1 3/8"
1
6 14C1491375
1 7/16"
2
-
14C1491437
1 1/2"
2
-
14C1491500
1 9/16"
1
11 14C1491562
1 5/8"
1
12 14C1491625
1 11/16"
1
10 14C1491687
1 3/4"
3
-
14C1491750
1 13/16"
3
-
14C1491812
1 7/8"
3
8 14C1491875
1 15/16"
3
8 14C1491937
2"
3
8 14C1492000

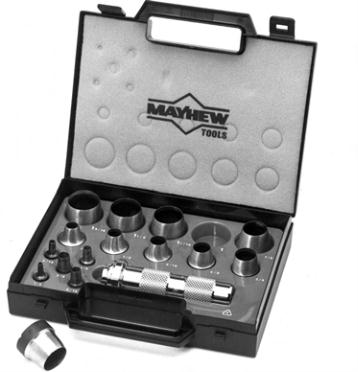

STYLE 14M33OUS
Features the only dual cutting heads in the marketplace. May be paired and
interchanged for an endless combination of size possibilities. Unique patented design
of locking system allows the cutting tools to be changed and locked in place for precise
cuts. Used for cutting out washers and sealing rings from a multitude of materials.
Punch sizes included: 1/8", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 3/4", 7/8",
1", 1-1/16", 1-1/8", and 1-3/16".
Case dimensions: 8-3/4" x 6-1/4" x 1-1/2".
Weight: 2.47 lbs
Mayhew 16 piece Hollow Punch Tool Kit
