APPLICATION:
CONSTRUCTION
TUBE:
COVER:
REINFORCEMENT:
TEMPERATURE:
PACKAGING:
BRANDING (SPIRAL):
COUPLINGS:
NON-STOCK/SIZES:
ORDER CODES:
A versatile, heavy-duty air hose for use in rough industrial applications or for severe service
in mines, quarries and construction jobs.
Black Plioflex® synthetic rubber, RMA Class C (Limited Oil Resistance)(nonconductive)
Green Plioflex® synthetic rubber (wrapped impression), RMA Class C (Limited Oil Resistance)
Spiral-plied synthetic fabric
-25°F to 180°F (-32°C to 82°C)
100’ length, coiled, polywrapped
Example: Goodyear® Plicord® Air Green 400 psi WP.
Contact fitting manufacturer for proper fitting recommendation and coupling procedure.
Refer to page 303 for special production run minimum requirements.
549-006

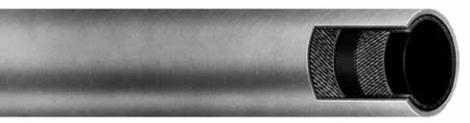

PLICORD®
AIR GREEN 400
ID NOM. OD MAX. WP WEIGHT
in. mm. in. mm. psi Mpa lb./ft. kg./m.
PLICORD® AIR GREEN 400
1/2 12.7 0.880 22.4 400 2.76 0.23 0.34
5/8 15.9 1.050 26.7 400 2.76 0.32 0.48
3/4 19.1 1.230 31.2 400 2.76 0.45 0.67
1 25.4 1.500 38.1 400 2.76 0.58 0.86
1¼ 31.8 1.790 45.5 400 2.76 0.74 1.10
15/16 33.3 1.890 48.0 400 2.76 0.83 1.24
1½ 38.1 2.040 51.8 400 2.76 0.86 1.28
2 50.8 2.546 64.7 400 2.76 1.11 1.65
2½ 63.5 3.156 80.2 400 2.76 1.64 2.44
3 76.2 3.700 94.0 400 2.76 2.14 3.18
Product Specifications
