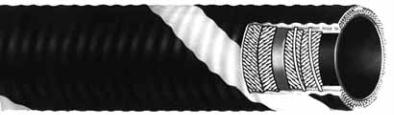

FLEXDOCK® 225
APPLICATION:
CONSTRUCTION
TUBE:
COVER:
REINFORCEMENT:
TEMPERATURE:
PACKAGING:
BRANDING (SPIRAL):
COUPLINGS:
NON-STOCK/SIZES:
ORDER CODES:
Built with a corrugated cover to provide flexibility in petroleum transfer service. A variety of tube
compounds are available to tailor the chemical and hydrocarbon resistance of the hose to the
type of material handled.
Nitrile synthetic rubber for up to 50% aromatics. Also available with a Flosyn ® tube for up to
100% aromatics.
Black Wingprene® synthetic cover, corrugated, wrapped finish
Spiral-plied heavy-duty synthetic fabric with double wire helix
-25°F to 200°F (-32°C to 93°C)
Chloroplast heavy-duty packaging
Example: Goodyear® Flexdock 225 psi WP Nitrile Oil Service.
Coupled with standard built-in steel nipple/150#RFSO flanges. Available in other bolt hole
patterns, materials and floating flanges on request. Swage nipples are offered up to 10”.
Hose assembly is electrically continuous unless otherwise specified by customer.
Custom lengths available, contact customer service.
541-532 (Nitrile tube) 541-534 (Flosyn® tube)
ID NOM. OD MAX. WP BEND RADIUS VACUUM HG WEIGHT
in. mm. in. mm. psi Mpa in. mm. in. mm. lb./ft. kg./m.
FLEXDOCK® 225
3 76.2 3.89 98.8 225 1.55 11 279 29 737 3.28 4.88
4 101.6 5.29 134.4 225 1.55 15 381 29 737 6.30 9.38
6 152.4 7.34 186.4 225 1.55 22 559 29 737 9.50 14.14
8 203.2 9.43 239.5 225 1.55 30 762 29 737 13.81 20.55
10 254.0 11.63 295.4 225 1.55 40 1016 29 737 20.49 30.49
12 304.8 13.72 348.5 225 1.55 60 1524 29 737 25.13 37.40
Note: Factory coupled hose manufactured according to the code of Federal Regulations standard 33 CFR 154.500 and
33 CFR 156.170.
Product Specifications
