Page 32 - Cover Front

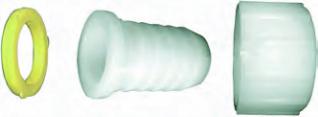

3-Piece Barb Assembly
Garden Hose fitting with swivel connection. Used to connect 3/4” FGHT
to a hose. Washer is vinyl in both nylon and poly assemblies.

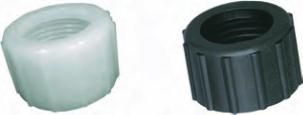

Swivel Nut
Garden Hose fitting used to connect a hose using a C series fitting with a washer.
PART # THREAD
NYLON POLYPROPYLENE
B 3400 B 3400 P
3/4” FGHT
B 3400 F B 3400 F P
3/4” FGHT
3/4” SPT
Washers
Vinyl Garden Hose washer. Used with all 3/4” FGHT fittings in this catalog.
PART #
W 406
DESCRIPTION
Vinyl Garden Hose Washer
W 40650 S Vinyl Garden Hose Washer with 50 mesh screen
Garden Hose Shutoff Valves
Single and double garden hose valves with 3/4” GHT.
100 PSI maximum operating pressure. Nylon construction.
PART #
G 3434 V
DESCRIPTION
3/4” FGHT (inlet) x 3/4” MGHT (1 outlet)
G 3434 YV 3/4” FGHT (inlet) x 3/4” MGHT (2 outlets)
Reducing Nipple
Garden Hose fitting used to connect two FPT fittings.
PART # THREAD
NYLON POLYPROPYLENE
RM 34116 G RM 34116 GP
MALE X MALE
3/4” MGHT 11/16” UN
PART # WASHER
NYLON POLYPROPYLENE
B 3414 W
B 3438 W
B 3412 W
B 3458 W
B 3434 W
B 3414 W P
B 3438 W P
B 3412 W P
B 3458 W P
B 3434 W P
B 3400
B 3400
B 3400
B 3400
B 3400
1/4”
3/8”
1/2”
5/8”
3/4”
W 406
W 406
W 406
W 406
W 406
SWIVEL BARB
G 3434 YV
W 40650 S
W 406
®
*Prices Subject To Change Without Notice • EMAIL: sales@grnleafinc.com • WEBSITE: http://www.grnleafinc.com
A
R
D
E
N
H
O
S
E
F
I
T
T
I
N
G
S
30
G 3434 V
