36
Large Solenoid Valve
2-Way
Solenoid Valves
12-Volt DC Electric Boom Shutoff Valves have a 3/4”
NPT Female inlet, 3/4” NPT male bypass outlet and a
1/2” NPT female boom outlet.
This direct operating valve is designed for 125 PSI
maximum operating pressure and 10GPM.
(only 5 PSI pressure is lost @ 10 GPM)
• Draws 2 amps per valve at 12 volts.
• Viton seals and o-rings.
• Wetted parts are made of 430 SS and glass filled nylon.
®
PART # DESCRIPTION
2500B-1 Solenoid Shutoff Valve, Single
Manual Valve
2750 Manual Valve
This manual valve has a 3/4” NPT male and female inlet
and bypass and a 1/2” NPT female boom outlet.
• 0-10 GPM, 175 PSI
• Viton Seals and o-rings.
• Wetted parts are made of 302 SS and glass filled nylon.
*The 2750 is a manual valve with a 1/4” NPT pump pressure point
that needs to be drilled to function.
PART # DESCRIPTION
2750 Manual Shutoff Valve
Wiring Harnesses
• 96” wiring harness with on/off switch & 2-pin connector
• 12 volt
PART # DESCRIPTION
WH 101 CA
WH 102 BC

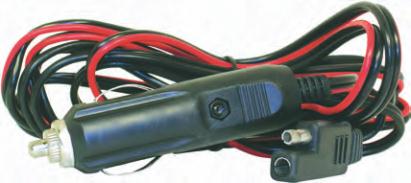

12-volt with car adapter connection

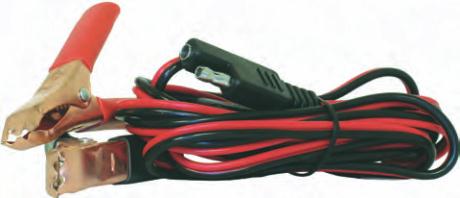

12-volt with 30 amp battery clips
2500B-1
2750
WH 101 CA
WH 102 BC
