7 P.O. BOX 88 • 11144 TONEY ROAD • FONTANET, IN 47851 • PHONE: 800-654-9808 • FAX: 812-877-4278

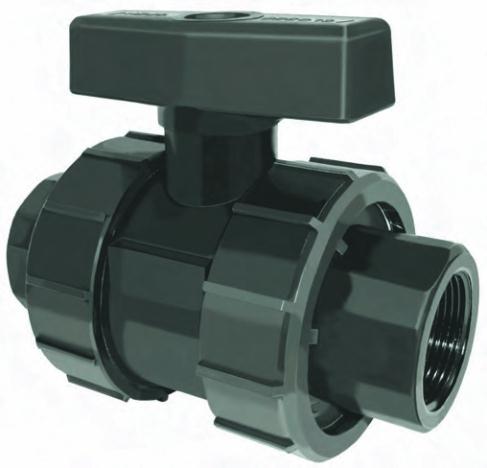

True Union Ball Valve
- True Union, in-line repairable
- Sturdy construction, chemical couple polypropylene
- Precision machined ball & multiple “O” rings seals
prevent leaking
- 125 P.S.I. @ 140° F
- PTFE filled Polyethylene Seats
- E.P.D.M. seals standard
(optional for Viton® & Buna seals)
- Optional Lever Handles

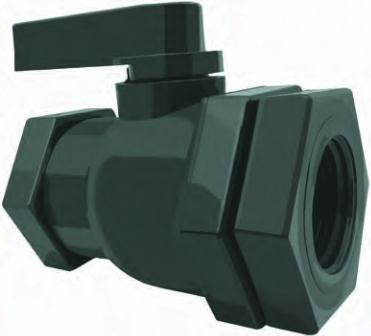

HM Quick Shut Off Valve
One quarter turn polypropylene ball valve. Used in liquid
plumbing applications as a quick shut off valve.
PART # DESCRIPTION
HM 50 B
HM 75 B
HM 38 V
HM 50 V
HM 75 V
PART # SIZE DESCRIPTION
TU 050 E 1/2”
1/2”
3/4”
3/4”
1”
1”
1-1/4”
1-1/4”
1-1/2”
1-1/2”
2”
2”
Full Port
Full Port
Full Port
Full Port
Standard Port
Standard Port
Full Port
Full Port
Full Port
Full Port
Standard Port
Standard Port
(T handle)
TU 050 EL (lever handle)
TU 075 E (T handle)
TU 075 EL (lever handle)
TU 100 E (T handle)
TU 100 EL (lever handle)
TU 125 E
TU 125 EL (lever handle)
TU 150 E (T handle)
(T handle)
TU 150 EL (lever handle)
TU 200 E (T handle)
TU 200 EL (lever handle)
SIZE B L H C W
1 1/4”, 1 1/2”, 2” 4 1/4” 6 1/4” 5 1/2” 1 7/8” 3 3/4”
1/2”, 3/4”, 1” 3 1/2” 4 3/4” 3 3/8” 1 1/8” 2 3/8”
1/2” FPT With Buna “O” Ring
3/4” FPT With Buna “O” Ring
3/8” FPT With Viton® “O” Ring
1/2” FPT With Viton® “O” Ring
3/4” FPT With Viton® “O” Ring
W L
B
H
C
