www.anvilintl.com 113
features

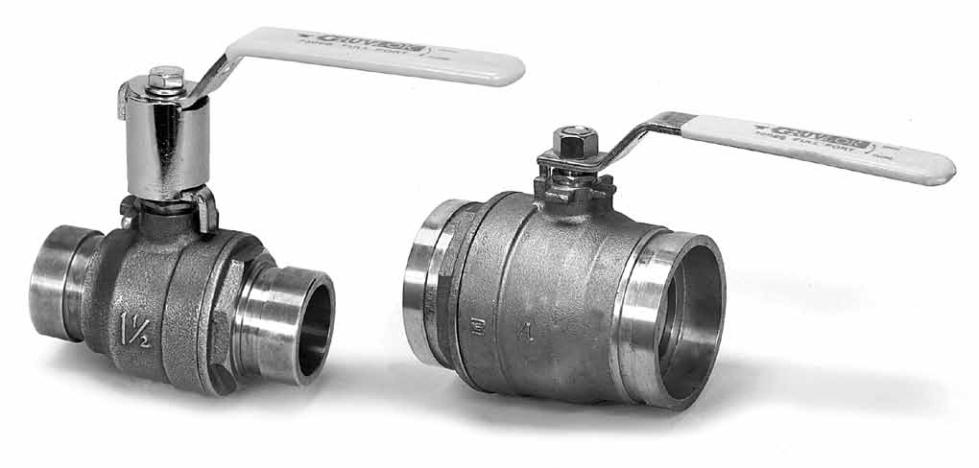

SERIES 7500B
Grooved-End Bronze Ball Valve
The Gruvlok® 7500B Cast Bronze Ball Valve is the ONLY
grooved-end ball valve on the market for copper systems.
Available in Full Port Confgurations in sizes 1 1/2" through 3"
and with a streamlined port in the 4" version, the 7500B fts a
wide range of applications from commercial plumbing and
industrial applications, to oilfeld and mining.
Durable temperature resistant virgin PTFE seats and a solid 316
stainless steel ball and stem in combination with Gruvlok End
confgurations, make the 7500B among the most specifable
valves in the industry.
SERIES 7500B
with Stem Extension Kit
SERIES 7500B
• For use in grooved-end pipe systems 1 1/2" to 4"
• 300 psi bubble tight shutoff
• 190° F (88° C) operating temperature
• Low torque operation
• Superior fow – Full port 1 1/2" to 3", Standard port 4"
• Solid 316 stainless steel ball and stem
• Vented ball
• Virgin PTFE seats
• Adjustable packing gland
• Additional options available –
locking device, memory stop, oval handle style
and stem extension
• Suitable for HVAC applications
• End-of-line service capabilities
• MSS-SP-110
HOW TO ORDER: Specify size and fgure number
(example: 2" GC-7500B)
GL-2.10
