roll groovers
www.anvilintl.com
146
MODEL 1007 & 3007
Roll Groovers
A. 1007 STANDARD EQUIPMENT
- Roll Groover complete with
groove and drive rolls for 2" - 12" steel pipe, Steel/CTS Dual
Guide Roll Assembly, one and one-half horsepower electric
motor drive with foot switch. Two stage hydraulic hand pump,
mounting base with footed support legs. Complete set-up and
operating instructions; 2" - 6" rolls on tool, 8" - 12" rolls stored in
box, and three depth gauges covering the range of 2" through
12" pipe are mounted on the tool.
Shipped in closed wood crate that can be used for storage or
rental tool return.
Shipping Weight: 620 lbs.
A. 3007 STANDARD EQUIPMENT
– Roll Groover complete
with groove and drive rolls for 2" - 12" steel pipe, Steel/CTS
Dual Guide Roll Assembly, two stage hydraulic hand pump,
mounting base with footed support legs for direct attachment
to your Ridgid®300 Power Drive. Complete set-up and operating
instructions; 2" - 6" rolls on tool; 8" - 12" rolls stored in box, and
three depth gauges covering the range of 2"-12" pipe are mounted
on the tool. Required Ridgid 300 Power Drive not included.
Shipped in closed wood crate that can be used for storage or
rental tool return.
Shipping Weight: 330 lbs.
B. OPTIONAL EQUIPMENT
Steel Pipe Option:
• 2"-12" Schedule 10 Rolls: Consisting of 2"-6" and 8"-12" roll sets.
• 14"-16" Steel Grooving Rolls (Model 1007 only).
Advanced Copper Method Option:
• 2"-6" Advanced Copper Method (IPS Copper) Grooving Assembly
with groove and drive rolls, M&L Advanced Copper Method guide
roll assembly, and a 2"-6" Universal Diameter Gauge.
• 2"-6" Type K Advanced Copper Method (IPS Copper) Grooving Assembly.
• 3"-6" Type DWV Advanced Copper Method (IPS Copper) Grooving
Assembly.
• 8" Advanced Copper Method Assembly with groover and drive roll,
hydraulic copper guide roll unit suitable for K, L, M, and DWV tubing,
and an 8" Universal Diameter Gauge.
CTS Copper System Option:
• 2"-8" CTS Copper System Grooving Rolls, 2"-4" CTS Depth Gauge, and
5"-8" CTS Depth Gauge.
Other:
• Optional 230 volt, 60Hz, 15 amp, single phase electrical panel with
motor is available for the 1007 Roll Groover.

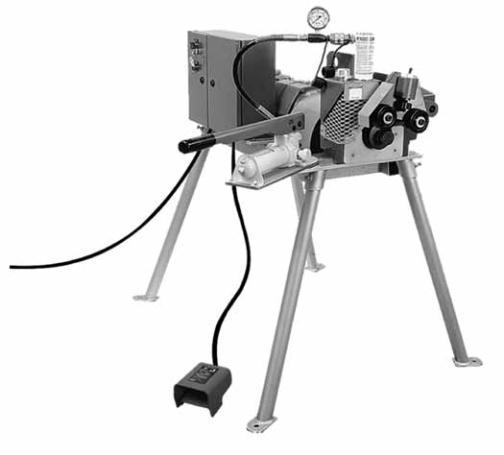

MODEL 1007 ROLL GROOVERS

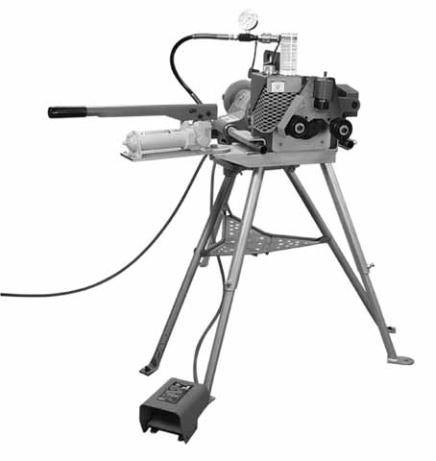

MODEL 3007 ROLL GROOVERS
Gruvlok roll grooving technology is protected by U.S. Patents 5450738, 5570603, 5778715 and others pending.
GL-2.10
