140
AIR CHUCKS
B
RASS
A
IR
B
RAKE
- A
CCESSORIES
B
RASS
F
ITTINGS
AIR BRAKE HOSE
AIR BRAKE HOSES
•Spiral synthetic cord reinforcement with neoprene cover.
•-40
0
F to +200
0
F temperature range.
•Max opperating pressure 255 psi
•Max burst pressure 900 psi
• Meets SAE J1402

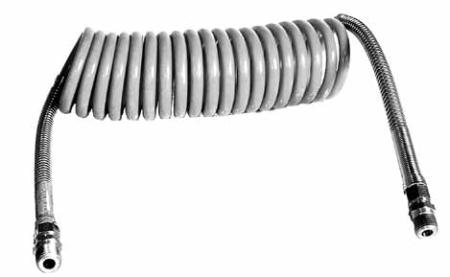

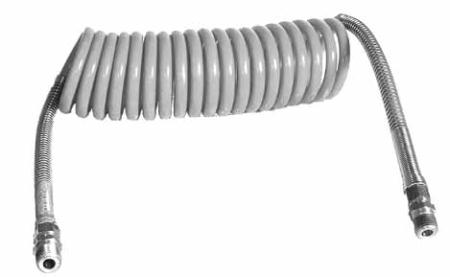

COILED AIRBRAKE
TUBE ASSEMBLIES
•Conforms to SAE J844 Type B and SAE J1131.
•Conforms to DOT FMVSS 571. 106.
•Maximum Working Pressure 150 PSI,
•Minimum Burst 950 PSI.
•Temperature Range -40
0
F to 200
0
F.
•Brass end with spring guards and 1/2” male pipe
connectors.
•Spring guards zinc plated for maximum corrosion re-
sistance.
•Color coding, red for emergency and blue for service,
provides you with error free installation.
•Preassembled for immediate installation.
•1/2” O.D. with 1/2” fitting.
Each contains 1 red, 1 blue.
RED
Blue
Part #
ID OD Length
38-910
3/8
3/4
50'
----
38-915
1/2
7/8
50'
----
Part # Working
Length
Pigtail
Length
38-700
12'
6"
----
38-705
12'
12"
----
38-710
15'
12"
----
REMOTE CONTROL
DRAIN VALVES
REMOTE CONTROL DRAIN VALVES
•
Brass Body and stainless steel spring.
•
Steel cable, nylon coated, certified to 200lbs pull test.
•
Low profile to minimize accidental hits and damages.
•
Pipe thread 1/4” NPTF.
Part #
Length
46-492
Standard 48"
----
46-493
Standard 60"
----
