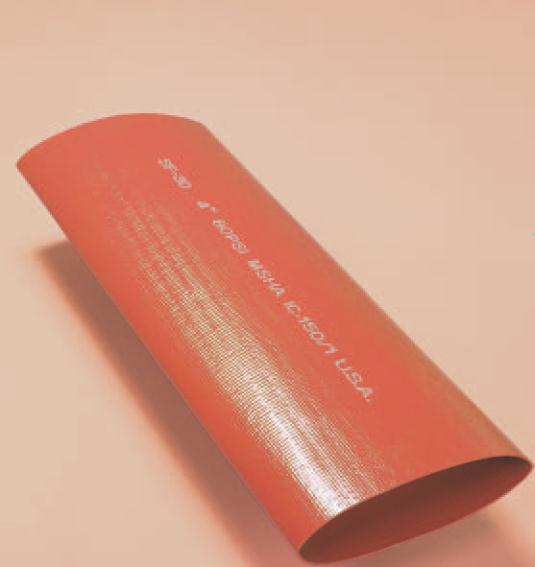

Code: SF-30
P.V.C. BRICK RED WATER
DISCHARGE HOSE
■ STND. LENGTH: 300 ft. per bale (Special order for
longer lengths)
■ TEMP. RANGE: -5°F to 170°F
■ APPLICATIONS: Thick, tough wall for Rentals,
Construction, Mines.
■ CONSTRUCTION: 2 Polyester Spirals plus
1-ply vertical yarns.
■ FLAME RESISTANT: USMSHA IC-150/1
Special order only
■ CAUTION: For liability purposes, if temperature
exceeds 110°F the working pressure
will go down. Please check with
factory to ensure sufficient safety factor.
NOMINAL APPROX. Max.W.P. DESIGN APPROX.
SIZE I.D. WALL at 70°F psi B.P. psi Wt. 300ft
1-1/2" 1.61" 0.075" 110 psi 360 66 lbs
2" 2.09" 0.075" 100 psi 320 87 lbs
3" 3.07" 0.079" 100 psi 300 129 lbs
4" 4.13" 0.083" 80 psi 240 181 lbs
SF-30 ®
NOMINAL APPROX. Max.W.P. DESIGN APPROX.
SIZE I.D. WALL at 70°F psi B.P. psi Wt. 300ft
6" 6.18" 0.118" 100 300 329 lbs

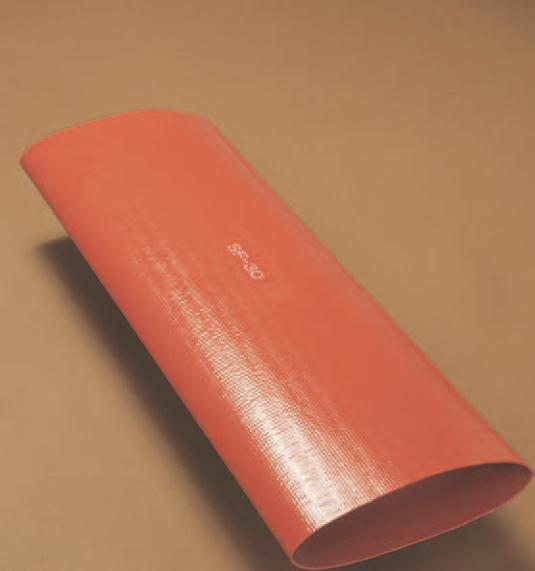

Code: SF-30
P.V.C. 100 PSI RANGE
BRICK RED DISCHARGE HOSE
■ LENGTH: 300 ft. per bale (Special order for
longer lengths)
■ TEMP. RANGE: -5°F to 170°F
■ APPLICATIONS: Mines, Construction, etc.
■ CONSTRUCTION: 3-Ply Polyester yarns. Both
tube and cover are extruded
simultaneously to obtain
maximum bonding.
■ CAUTION: For liability purposes, if temperature
exceeds 110°F the working pressure
will go down. Please check with
factory to ensure sufficient safety factor.
SF-30 ®
