Food & Beverage
Food Suction /Hot Air Blower Hose
EPDM Tube
FDA, PMO, USDA, 3-A

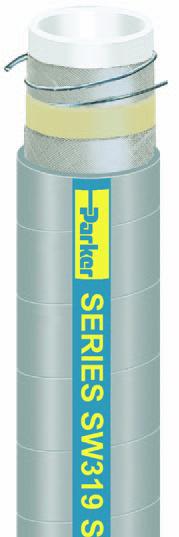

Series SW319
Series SW319 is a high temperature hot air blower hose designed to load/unload dry
materials in plants or from transport vehicles. SW319 is also a suction and discharge hose
designed to handle dry abrasive materials such as grains, granules, pellets and powders,
non-fatty and non-oily foods, liquids, sanitary products and potable water in a variety
of food transfer applications. Te hose is manufactured using polished stainless steel
mandrels for an ultra-smooth, bacteria-free tube that will not impart taste or odor, and
is resistant to abrasion. Te lightweight construction incorporates a dual wire helix that
provides full suction capability, kink resistance and a path to conduct a static electrical
charge to ground. Te EPDM cover is resistant to abrasion, mild chemicals and ozone.
Tube: White EPDM
Reinforcement: Multiple textile plies with dual wire helix
Cover: Gray EPDM; wrapped fnish
Temp. Range: -20°F to +325°F [+350°F intermittent]
(-29°C to +163°C [+177°C intermittent])
Brand Method: Yellow text on blue stripe
Brand Example: PARKER SERIES SW319 EPDM FOOD GRADE SUCTION / HOT AIR
BLOWER HOSE MEETS FDA/3-A/USDA/PMO REQUIREMENTS
(3-A LOGO) XXX PSI WP MADE IN USA
Design Factor: 4:1
Industry Standards: FDA, PMO, USDA, 3-A
Applications: • Dry abrasive materials, four, grains, granules, pellets, powders, sugar
• Non-oily foods, liquids, milk, potable water, sanitary products
• Hot air blower systems
• In-plant and tank transfer, delivery, transport
Vacuum: Full
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
SW319-1250 1-1/4 31.8 2 1.813 46.0 0.75 0.34 5.0 127.0 250 17.2 * 100 N
SW319-1500 1-1/2 38.1 2 2.063 52.4 0.86 0.39 6.0 152.4 250 17.2 * 100 N
SW319-2000 2 50.8 2 2.625 66.7 1.27 0.58 7.0 177.8 200 13.8 * 100 N
SW319-2500 2-1/2 63.5 2 3.188 81.0 1.75 0.79 10.0 254.0 200 13.8 * 100 N
SW319-3000 3 76.2 2 3.688 93.7 2.25 1.02 12.0 304.8 150 10.3 * 100 N
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
