Material Handling /Dredge
Dry Cement Hose
3/16" SBR Tube

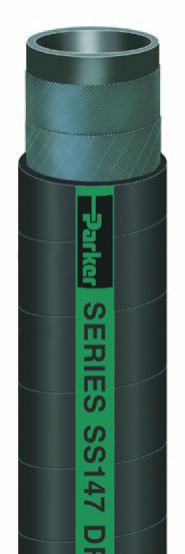

Series SS147
Series SS147 is a lightweight, low pressure discharge hose for dry abrasive materials such
as cement and powders. Te static dissipating 3/16" SBR tube provides abrasion resistance
and the SBR cover is resistant to abrasion, cuts, scufs and weathering.
Tube: 3/16" Black SBR; static dissipating
Reinforcement: Multiple textile plies
Cover: Black SBR; wrapped fnish
Temp. Range: -40°F to +180°F (-40°C to +83°C)
Brand Method: Black text on green stripe
Brand Example: PARKER SERIES SS147 DRY MATERIAL DISCHARGE HOSE 60 PSI WP
MADE IN USA
Design Factor: 4:1
Industry Standards: None applicable
Applications: • Abrasive dry materials, cement, lime, powders, silica
• In-plant transfer/loading, bulk transport trucks
• Construction, general industrial
Vacuum: Not recommended
Compare to: Boston Lynx HD; Gates Dry Cement Delivery; Thermoid Transporter;
Veyance Black Softwall
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Std Pack
Qty
(ft)
Stock
Status
**
SS147-4000 4 101.6 2 4.625 117.5 1.96 0.89 60 4.1 100 Y
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
