136
Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH
South Gate, CA
Eastern USA
Western USA
www.safehose.com
e-mail: indhose@parker.com
Material Handling /Dredge
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Max
Lg
(ft)
ES937-6000
6
152.4
2
6.531
165.9
2.90
1.32
65
4.5 100
ES937-6625
6-5/8 168.3
2
7.156
181.8
3.10
1.41
60
4.1 100
ES937-7000
7
177.8
2
7.531
191.3
3.30
1.50
60
4.1
50
ES937-7500
7-1/2 190.5
2
8.031
204.0
3.60
1.63
55
3.8
50
ES937-8000
8
203.2
2
8.531
216.7
3.80
1.72
50
3.4
50
ES937-8625
8-5/8 219.1
2
9.156
232.6
4.20
1.91
45
3.1
50
ES937-10000
10
254.0
2
10.531 267.5
4.90
2.22
45
3.1
50
ES937-10750
10-3/4 273.1
2
11.281 286.5
5.20
2.36
40
2.8
50
ES937-12000
12
304.8
2
12.531 318.3
5.80
2.63
40
2.8
50
ES937-12750
12-3/4 323.9
2
13.281 337.3
6.20
2.81
40
2.8
50
ES937-14000
14
355.6
2
14.531 369.1
6.80
3.08
35
2.4
50
ES937-16000
16
406.4
2
16.531 419.9
7.70
3.49
30
2.1
50
ES937-18000
18
457.2
2
18.531 470.7
8.70
3.95
30
2.1
50
ES937-20000
20
508.0
2
20.531 521.5
9.60
4.35
25
1.7
50
ES937-22000
22
558.8
2
22.531 572.3
10.60
4.81
20
1.4
50
ES937-24000
24
609.6
2
24.531 623.1
11.15
5.06
20
1.4
50
ES937-30000
30
762.0
2
30.594 777.1
14.00
6.35
20
1.4
50

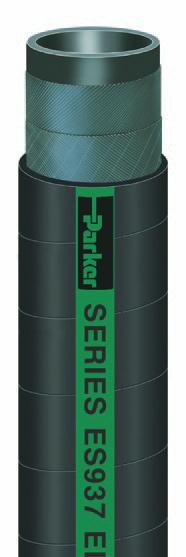

Elephant Trunk Material Handling Hose
1/8" SBR Tube
Series ES937
CustomMade Hose
Series ES937 is a fexible, lightweight hose for gravity fow and low pressure discharge of
cement and other abrasive materials. Te 1/8" SBR tube provides abrasion resistance and
the SBR cover is resistant to abrasion, cuts, scufs and weathering.
NOTE:
Other customized versions of this product are available. Contact Parker.
Tube:
1/8" Black SBR
Reinforcement:
Multiple plies of tire cord
Cover:
Black SBR; wrapped fnish
Temp. Range:
-40°F to +180°F (-40°C to +82°C)
Brand Method:
Black text on green stripe
Brand Example:
PARKER SERIES ES937 ELEPHANT TRUNK HOSE
Design Factor:
4:1
Industry Standards:
None applicable
Applications:
• Light abrasives, dry cement
• Construction, general industrial
Vacuum:
Not recommended
Packaging:
Folded and palletized coils
Couplings:
Plain or enlarged ends only; contact Parker
