Mate
rial Handling /Dredge

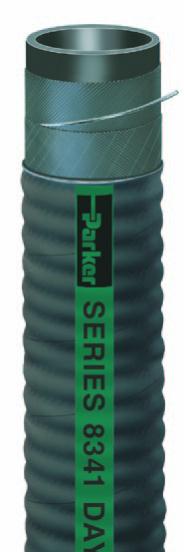

DAY-LITE®
Corrugated Material Handling Hose
Suction / Vacuum
Natural Rubber / SBR Blend Tube
Series 8341
Series 8341 is a fexible suction/vacuum and discharge hose for dry or wet abrasive
materials such as debris evacuation by mobile vacuum trucks in sewer cleaning
applications. Te static dissipating natural rubber/SBR blend tube provides abrasion
resistance, and the wire helix provides full suction capability and kink resistance. Te
corrugated natural rubber/SBR cover provides fexibility and is resistant to abrasion and
weathering. Series 8341 is available in 200-foot continuous lengths.
Tube: Black natural rubber/SBR blend
Reinforcement: Multiple textile plies with wire helix
Cover: Black natural rubber/SBR; corrugated wrapped fnish
Temp. Range: -40°F to +180°F (-40°C to +83°C)
Brand Method: Black text on green stripe
Brand Example: PARKER SERIES 8341 DAY-LITE® SUCTION AND DISCHARGE HOSE
MADE IN USA (DATE CODE)
Design Factor: 3:1
Industry Standards: None applicable
Applications: • Abrasive materials, debris, water
• Construction, general industrial, sewer cleaning
Vacuum: Full
Compare to: Veyance Plicord Vacuum
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Std
Pack
Qty
(ft)
Stock
Status
**
8341-1500 1-1/2 38.1 2 1.969 50.0 0.77 0.35 4.5 114.3 75 5.2 100 N
8341-2000 2 50.8 2 2.480 63.0 1.00 0.45 6.0 152.4 75 5.2 100 N
8341-3000 3 76.2 2 3.543 90.0 1.62 0.73 9.0 228.6 75 5.2 100 N
8341-4000 4 101.6 2 4.615 117.2 2.47 1.12 12.0 304.8 75 5.2 100 N
8341-6000 6 152.4 2 6.693 170.0 4.41 2.00 18.0 457.2 75 5.2 100 Y
8341-8000 8 203.2 3 8.724 221.0 5.91 2.68 24.0 609.6 75 5.2 100 N
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
