Material Handling /Dredge
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Std
Pack
Qty
(ft)
Stock
Status
**
SW360-2000 2 50.8 2 2.500 63.5 1.08 0.49 6.0 152.4 200 13.8 100 Y
SW360-3000 3 76.2 2 3.563 90.5 1.78 0.81 12.0 304.8 200 13.8 100 Y
SW360-4000 4 101.6 2 4.563 115.9 2.46 1.12 16.0 406.4 125 8.6 100 Y
SW360-6000 6 152.4 2 6.813 173.0 5.00 2.27 24.0 609.6 100 6.9 100 Y
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.

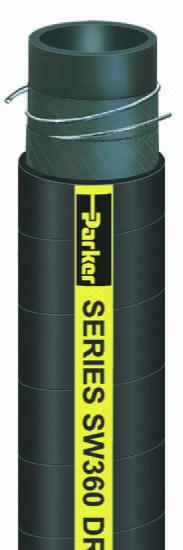

DRAGON BREATH®
Hot Air Blower Hose
Series SW360
Series SW360 is a heavy duty, high pressure hot air blower hose designed for bulk loading/
unloading of dry materials in plants or transport vehicles. Te hose transfers hot air from
a compressor to the storage bin/cargo bay to propel bulk product. Te hose construction
incorporates a tube that features a temperature rating to 350°F (177°C) and resists drying
out. Te dual wire helix provides full suction capability, kink resistance, fexibility for ease
of handling and a path to conduct a static electrical charge to ground. Te cover resists
abrasion, heat and ozone.
NOTE:For larger diameter hose, refer to Series EW360.
Tube: Black EPDM
Reinforcement: Multiple textile plies with dual wire helix
Cover: Black EPDM; wrapped fnish
Temp. Range: -40°F to +350°F (-40°C to +177°C)
Brand Method: Black text on yellow stripe
Brand Example: PARKER SERIES SW360 DRAGON BREATH® HOT AIR BLOWER HOSE
XXX PSI WP (CAUTION) MADE IN USA
Design Factor: 4:1
Applications: • Hot air blower systems
• In-plant transfer; delivery, loading/unloading
• General industrial, transportation
Compare to: Eaton Boston Wildcat Hot Air; Gates Hot Air Blower; Veyance Plicord
Torrid Air
Vacuum: Full
Packaging: Coils
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
