Mate
rial Handling /Dredge
Hot Tar & Asphalt Hose

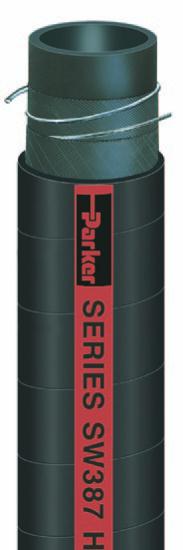

Series SW387
Series SW387 is a suction and discharge hose for high temperature materials such as hot
asphalt, glue, oil, tar and wax to 300°F continuous/350°F intermittent (149°C/177°C). Te
hose construction incorporates a dual wire helix that provides full suction capability, kink
resistance and a path to conduct a static electrical charge to ground. Te cover is resistant to
abrasion, heat, oil and weathering.
NOTE: For other hot tar and asphalt hoses, refer to Series 7204 and Series EW499.
Tube: Black nitrile
Reinforcement: Multiple textile plies with dual wire helix
Cover: Black nitrile; wrapped fnish
Temp. Range: -40°F to +350°F (-40°C to +177°C)
Brand Method: Black text on red stripe
Brand Example: PARKER SERIES SW387 HOT TAR & ASPHALT XXX PSI WP
MADE IN USA
Design Factor: 4:1
Industry Standards: None applicable
Applications: • Hot asphalt, glue, oil, tar
• In-plant and storage tank transfer
• Delivery, transport applicator trucks
Vacuum: Full
Compare to: Boston Black Cat; Thermoid Transporter; Veyance Pyrofex
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Std
Pack
Qty
(ft)
Stock
Status
**
SW387-1500 1-1/2 38.1 2 2.125 54.0 0.98 0.44 6.0 152.4 150 10.3 100 Y
SW387-2000 2 50.8 2 2.625 66.7 1.43 0.65 8.0 203.2 150 10.3 100 Y
SW387-2500 2-1/2 63.5 2 3.375 85.7 1.84 0.83 10.0 254.0 150 10.3 100 N
SW387-3000 3 76.2 2 3.750 95.3 2.42 1.10 12.0 304.8 150 10.3 100 Y
SW387-4000 4 101.6 2 4.813 122.2 3.60 1.63 18.0 457.2 150 10.3 100 Y
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Do not use for continuous service at 350°F. Do not use above 350°F for any service or any duration. Using above the
recommended service duration or temperature may lead to premature hose faliure and property damage, personal injury or death.
!
