Oil Field
BS&W™

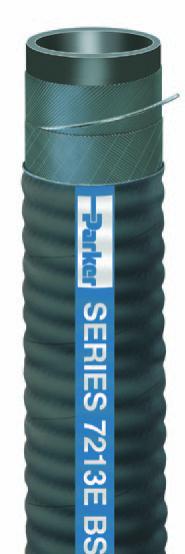

Corrugated Oil Field Suction / VacuumHose
Series 7213E
Series 7213E is a fexible, lightweight suction and discharge hose designed to handle
brine, crude oil, mild chemicals, petroleum waste, sediments, sludge, slurries and water in
harsh oil feld bottom sediment and waste pit recovery applications. Te corrugated hose
construction incorporates a wire helix that provides full suction capability, fexibility, kink
resistance, and a path to conduct a static electrical charge to ground. Te nitrile/SBR cover
is resistant to abrasion, oil and weathering.
NOTE: Do not use with refned oil or fuel.
Tube: Black nitrile/SBR
Reinforcement: Multiple textile plies with wire helix
Cover: Black nitrile/SBR; corrugated wrapped fnish
Temp. Range: -22°F to +185°F (-30°C to +85°C)
Brand Method: White text on blue stripe
Brand Example: PARKER SERIES 7213E BS&W OIL FIELD SUCTION HOSE
150 PSI MAX WP
Industry Standards: None applicable
Applications: • Brine, crude oil, mild chemicals, petroleum waste, sediments, sludge,
slurries, water
• Oil feld waste recovery, general industrial
Vacuum: Full
Compare to: Kuriyama T601AA; Jason Tupelo 4677; Texcel Tex-Vac; Veyance
Flextra Oilfeld
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7213E-1500 1-1/2 38.1 2 1.976 50.2 0.86 0.39 4.0 101.6 150 10.3 * 100 Y
7213E-2000 2 50.8 3 2.441 62.0 1.02 0.46 5.0 127.0 150 10.3 * 100 Y
7213E-2500 2-1/2 63.5 3 2.953 75.0 1.29 0.59 6.2 157.5 150 10.3 * 100 Y
7213E-3002 3 76.2 3 3.504 89.0 1.52 0.69 7.6 193.0 150 10.3 * 100 Y
7213E-4002 4 101.6 3 4.567 116.0 2.49 1.13 12.0 304.8 150 10.3 * 100 Y
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
