Petroleum – Aircraft
GOLD LABEL®
Aircraft Fueling Hose
API/IP 1529, NFPA 407
Series 7775

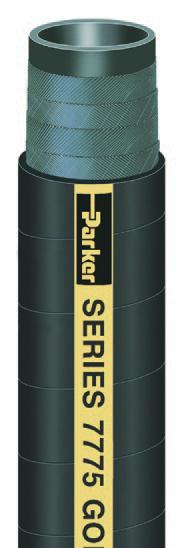

Series 7775 is a fexible, lightweight, low pressure aircraft fueling hose. Te hose
construction and materials provide easy handling for reel service and a path to conduct
a static electrical charge to ground. Te premium nitrile tube minimizes permeation and
will not contaminate product going through the hose, and the nitrile cover is resistant to
abrasion, oil and weathering. Series 7775 is available in 200-foot continuous lengths.
NOTES: • Refer to the table on pages 213-214 for fuel compatibility and service conditions.
• Refer to the Safety and Technical section of this catalog for safety, handling and
use information.
Tube: Black nitrile
Reinforcement: Multiple textile plies
Cover: Static conductive black nitrile; wrapped fnish
Temp. Range: -40°F to +180°F (-40°C to +82°C)
Brand Method: Side One: Embossed
Side Two: Black text on gold stripe
Brand Example: Side One: PARKER Series 7775 (ID) API/IP 1529/2005 TYPE C
GRADE 1 NFPA 407 (DATE CODE) WP 1034 KPa (150 PSI)
Side Two: PARKER GOLD LABEL ® AIRCRAFT FUELING HOSE
Design Factor: 4:1
Industry Standards: API 1529:2005, Type C, Grade 1; NFPA 407:2007
Applications: Aircraft fueling with avgas and jet fuel
Vacuum: Not recommended
Compare to: Veyance Advantage
Packaging: Coils (bulk hose available only to Parker Certifed Aircraft Fueling Hose
Assembly Fabricators)
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Drum/
Reel
OD
(in)
Drum/
Reel
OD
(mm)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Max
Lg
(ft)
Stock
Status
**
7775-0750 3/4 19.1 2 1.378 35.0 0.57 0.26 7.5 190.5 150 10.3 200 N
7775-1000 1 25.4 2 1.630 41.4 0.69 0.31 10.0 254.0 150 10.3 200 Y
7775-1250 1-1/4 31.8 4 1.910 48.5 0.88 0.40 13.0 330.2 150 10.3 200 N
7775-1500 1-1/2 38.1 4 2.190 55.6 1.07 0.49 15.0 381.0 150 10.3 200 Y
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
Hose Assemblies: Per customer specifcation; hydrostatically tested to 300 psi (20.7 bar) and certifed. Available only from Parker or Parker
Certifed Aircraft Fueling Hose Assembly Fabricators.
