Petroleum – LPG

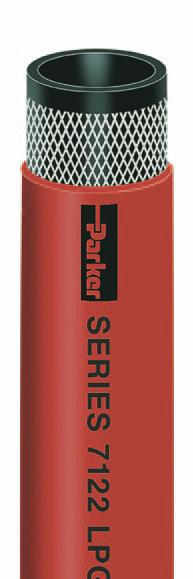

LP Gas Vapor Hose
Series 7122
Series 7122 is a fexible, lightweight, light duty hose connector for transfer of LP Gas vapor
in space heaters for chicken brooders and other light applications. Te hose construction
incorporates multiple textile plies of reinforcement for fexibility and kink resistance. Te
perforated cover is resistant to mild chemicals, oil and ozone.
NOTES:
• Do not use to transfer liquid LP gas, in gas grill or other applications requiring
Underwriters Laboratories (UL) or Canadian Gas Association (CGA)
performance or listing.
• Refer to the Safety and Technical section of this catalog for safety, handling and
use information.
Series 7122 and Natural Gas:
Te molecules of natural gas are small, enhancing their
ability to permeate through standard rubber hose constructions. Te permeation process is
more rapid as the working pressure increases, and natural gas accumulates with potentially
dangerous consequences. Series 7122 may be used for natural gas service, but ONLY under
ALL of the following conditions:
• Te application must be in a well-ventilated environment: Outdoors, or indoors with
signifcant continuous air movement.
• Series 7122 is not to replace fxed/rigid pipe where that material is more appropriate
due to reduced permeation and overall strength and durability. Use rigid pipe, non-
permeable tubing or hose with barrier constructions to convey natural gas whenever
possible.
Tube:
Black nitrile
Reinforcement:
Multiple textile plies
Cover:
Red chloroprene; perforated smooth fnish
Temp. Range:
-20°F to +160°F (-29°C to +71°C) (The hose construction is capable of
this rating, but LP Gas should NEVER be conveyed over 140°F/60°C)
Brand Method:
Black ink
Brand Example:
PARKER SERIES 7122 LPG VAPOR HOSE 125 PSI MAX WP MADE IN
USA (DATE CODE)
Design Factor:
4:1
Industry Standards:
None applicable
Applications:
• LP gas – vapor ONLY
• Chicken brooders, space heaters
• Agriculture, light industrial
Vacuum:
Not recommended
Compare to:
Gates LPG Vapor
Packaging:
Reels
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Perm
Cplg
Rec
*
Std Pack
Qty
(ft)
Stock
Status
**
7122-38200
3/8 9.5 2 0.656 16.7 0.15 0.07 3.8 96.5 125 8.6 HY 700
Y
* Couplings:
Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
