etroleum – Transport
TITANFLEX
®
Corrugated Tank Truck Hose
Series SWC609 (Black) and
Series SWC609R (Red)

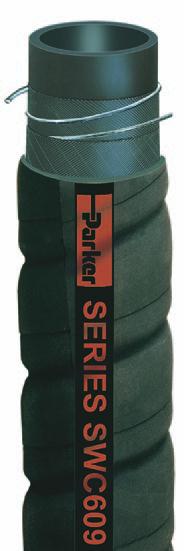

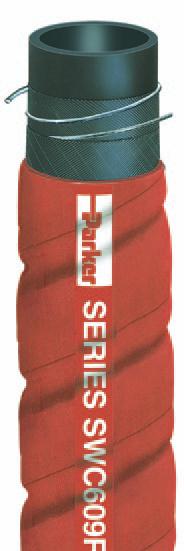

Series SWC609/SWC609R is an extremely fexible, high pressure suction
and discharge hose designed to handle oil and refned fuels such as
biodiesel (to B100 in dedicated service), diesel, ethanol and gasoline. Te
corrugated hose construction incorporates a dual wire helix that provides
full suction capability, superior kink resistance, minimal force-to bend
and a path to conduct a static electrical charge to ground. Te cover is
resistant to abrasion, oil and weathering.
NOTE:
Refer to the table on pages 213-214 for fuel compatibility and
service conditions.
Tube:
Black nitrile
Reinforcement:
Multiple textile plies with dual wire helix
Cover:
SWC609:
Black nitrile; corrugated wrapped fnish
SWC609R:
Red nitrile; corrugated wrapped fnish
Temp. Range:
-40°F to +180°F (-40°C to +82°C)
Brand Method:
SWC609:
Red text on black stripe
SWC609R:
White text on red stripe
Brand Example:
PARKER SERIES SWC609(R) TITANFLEX
®
PETROLEUM SUCTION HOSE XXX PSI WP MADE IN
USA
Design Factor:
4:1
Industry Standards:
None applicable
Applications:
• Biodiesel (to B100 in dedicated service), diesel,
ethanol, gasoline, oil
• In-plant and storage tank transfer
• Delivery, transport
Vacuum:
Full
Compare to:
Boston Bobcat; Gates Longhorn; Thermoid
Transporter; Veyance Flextra
Packaging:
Coils
WARNINGS!
Couplings attached with bands or clamps
may reduce the working pressure of the
hose assembly to less than the maximum
rated working pressure of the hose. Refer
to the NAHAD Industrial Hose Assembly
Guidelines.
Do not use for petroleum transfer or fuel
delivery service in submerged applications,
such as marine fueling.
!
Series SWC609 (Black) and Series SWC609R (Red)
Part
Number
SWC609 or
SWC609R
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
SWC609
Stock
Status
**
SWC609R
Stock
Status
**
-1250***
1-1/4 31.8 2 1.690 42.9 0.63 0.29 1.3 33.0 250 17.2 *
100 N n/a
-1500
1-1/2 38.1 2 1.950 49.5 0.78 0.36 1.5 38.1 250 17.2 43 100 Y
N
-2000
2 50.8 2 2.450 62.2 1.00 0.45 2.0 50.8 250 17.2 43 100 Y
Y
-2500
2-1/2 63.5 2 3.000 76.2 1.44 0.65 2.5 63.5 200 13.8 *
100 Y
N
-3000
3 76.2 2 3.580 90.9 1.70 0.77 3.0 76.2 200 13.8 *
100 Y
Y
-4000
4 101.6 2 4.625 117.5 2.41 1.09 4.0 101.6 150 10.3 *
100 Y
Y
-6000***
6 152.4 2 6.750 171.5 4.30 1.95 8.0 203.2 125 8.6 *
100 Y
n/a
* Couplings:
Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
***
Series SWC609 only.
