etroleum – Transport
LIGHT-N-BRIGHT™Plus
Corrugated Petroleum Drop Hose
External PVC Helix
Series SP204

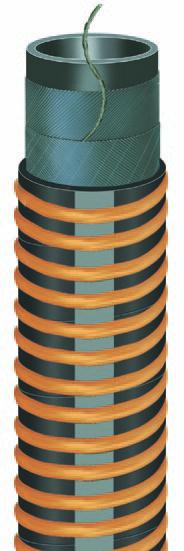

Series SP204 is an extremely fexible, lightweight drop hose designed to handle oil and
refned fuels such as biodiesel (to B100 in dedicated service), diesel, ethanol and gasoline
in gravity fow or suction applications. Te lightweight hose construction incorporates a
static wire as a path to conduct an electrical charge to ground, and the cover features an
external PVC helix for full suction capability, fexibility and superior abrasion, crush and
kink resistance. Series SP100 banding coils are recommended for installation of couplings.
Series XSP100 abrasion coils are available for maximum abrasion resistance along the entire
length of the hose.
NOTE:
Refer to the table on pages 213-214 for fuel compatibility and service conditions.
Tube:
Black nitrile
Reinforcement:
Multiple textile plies with static wire
Cover:
Black nitrile with external orange PVC helix
Temp. Range:
-40°F to +150°F (-40°C to +65°C)
Brand Method:
Solid gray stripe
Brand Example:
Not branded
Design Factor:
4:1
Industry Standards:
None applicable
Applications:
• Biodiesel (to B100 in dedicated service), diesel, ethanol, gasoline, oil
• In-plant and storage tank transfer; transport, delivery
• Drop/gravity fow service
Vacuum:
Full
Packaging:
Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Std Pack
Qty
(ft)
Stock
Status
**
SP204-2000
2 50.8 2 3.000 76.2 1.23 0.56 4.0 101.6 100 7.0 100
Y
SP204-3000
3 76.2 2 4.000 101.6 1.76 0.80 6.0 152.4 100 7.0 100
Y
SP204-4000
4 101.6 2 5.000 127.0 2.30 1.04 8.0 203.2 100 7.0 100
Y
SP204-6000
6 152.4 2 7.000 177.8 3.50 1.59 12.0 304.8 75
5.0 100
N
* Couplings:
Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNINGS!
„
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
„
Do not use for petroleum transfer or fuel delivery service in submerged applications, such as marine fueling.
!
