P
etroleum – Transport
Cover colors available:
Gray
Green
Red
Sand
Matte
Orange PVC Banding Coil /PVC Abrasion
Coil

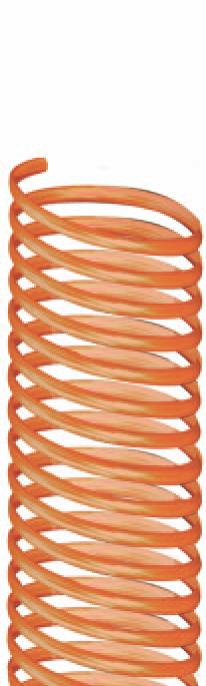

Series SP100 / XSP100
Series SP100 is a rugged PVC coil that threads onto a complementary hose end to create
a uniform banding area for coupling attachment. Te coil flls the gaps between the loops
of the outer PVC helix, providing an area for securing the banding clamp or ferrule. Series
XSP100 threads onto the entire length of a complementary hose to protect it from abrasion
and scufs, helping to extend hose life in highly abrasive areas. Series SP100 and XSP100 are
applied to Parker SP204, SP330, SP353 and SP483 hoses.
SP100 (ea)
Part
Number
Hose
ID
(in)
Hose
ID
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Turns Stock
Status
**
SP100-2000
2
50.8 0.19 0.09
8
Y
SP100-3000
3
76.2 0.33 0.15
10
Y
SP100-4000
4
101.6 0.46 0.21
10
Y
SP100-6000
6
152.4 1.02 0.46
16
Y
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status
subject to change. Contact Parker Customer Service.
Optional Colors:
Gray, Green, Red, Sand Matte. Specify color when ordering.
XSP100 (ft)
Part
Number
Hose
ID
(in)
Hose
ID
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Ft.
Stock
Status
**
XSP100-2000
2
50.8 0.19 0.09 100
N
XSP100-3000
3
76.2 0.33 0.15 100
N
XSP100-4000
4
101.6 0.46 0.21 100
N
XSP100-6000
6
152.4 1.02 0.46 100
N
* Couplings:
Refer to CrimpSource at www.safehose.com for coupling recommen-
dations and crimp specifcations.
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status
subject to change. Contact Parker Customer Service.
Optional Colors:
Gray, Green, Red, Sand Matte. Specify color when ordering.
