PVC
NEXCOL
General Purpose Tubing
Series 106

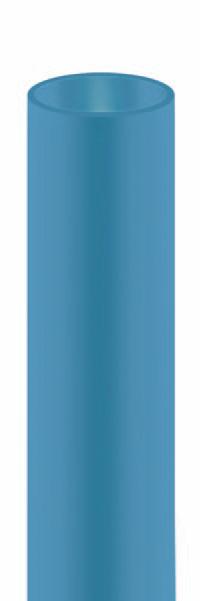

Series 106 is general purpose, silicone-free PVC tubing available in multiple standard colors
for color-coded identifcation for a variety of applications.
NOTES: • Do not use with oil or refned fuel.
• Other colors available. Contact Parker.
Tube: Black, blue, gray, green, white PVC; 75A Durometer
Temp. Range: +25°F to +150°F (-5°C to +65°C)
Working pressures are at +68°F (+20°C). Higher temperatures reduce the
available working pressure. See temperature/pressure chart on page 445.
Brand Method: Not branded
Industry Standards: None applicable
Applications: • Air, drain, light vacuum, water, wire harness
• General industrial
Vacuum: Light
Packaging: Cartons; coils
Part
Number
Color ID
(in)
ID
(mm)
Wall
(in)
Wall
(mm)
OD
(in)
OD
(mm)
Approx
Wt
Per Pkg
(lbs)
Approx
Wt
Per Pkg
(kgs)
Max
Rec WP
@ 68°F
(psi)
Max
Rec WP
@ 20°C
(bar)
Std
Pack
Qty
(ft)
Stock
Status
**
(USA)
106-02041702 White 1/8 3.2 0.062 1.6 1/4 6.4 19.00 8.60 65 4.5 1000 N
106-02048702 Black 1/8 3.2 0.062 1.6 1/4 6.4 19.00 8.60 65 4.5 1000 N
106-03058102 Black 3/16 4.8 0.062 1.6 5/16 7.9 2.50 1.10 55 3.8 100 N
106-04068102 Black 1/4 6.4 0.062 1.6 3/8 9.5 3.20 1.50 55 3.8 100 N
106-06088102 Black 3/8 9.5 0.062 1.6 1/2 12.7 4.50 2.00 45 3.1 100 N
106-08108102 Black 1/2 12.7 0.062 1.6 5/8 15.9 5.80 2.60 30 2.1 100 N
106-08128102 Black 1/2 12.7 0.125 3.2 3/4 19.1 12.90 5.90 45 3.1 100 N
106-10145100 Green 5/8 15.9 0.125 3.2 7/8 22.2 15.50 7.00 40 2.8 100 N
106-12166100 Blue 3/4 19.1 0.125 3.2 1 25.4 18.10 8.20 35 2.4 100 N
106-14187100 Gray 7/8 22.2 0.125 3.2 1-1/8 28.6 20.70 9.40 30 2.1 100 N
106-16208100 Black 1 25.4 0.125 3.2 1-1/4 31.8 25.80 11.70 25 1.7 100 N
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
! !
WARNING! Working pressures are at +68°F (+20°C). Higher temperatures reduce the available working pressure. See temperature/
pressure chart on page 445.
!
Other cover colors
available:
BLACK
GRAY
GREEN
WHITE
