Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH
South Gate, CA
Eastern USA
Western USA
www.safehose.com
e-mail: indhose@parker.com
PVC
NEXSPRAY

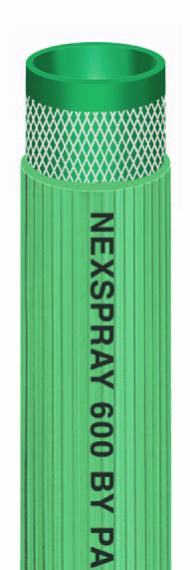

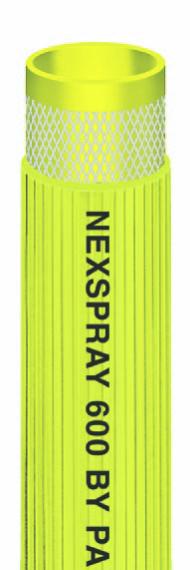

PVC Spray Hose
Series 268
Series 268 is a high pressure spray hose designed to handle chemicals,
herbicides and pesticides. Te longitudinally ribbed cover reduces drag and
is resistant to abrasion, ultraviolet light and weathering.
NOTE:
Do not use with hydrocarbon based spray solutions. Refer to Series
202 (U600).
Tube:
Green or yellow PVC
Reinforcement:
Multiple textile plies
Cover:
Green or yellow PVC; longitudinally ribbed fnish
Temp. Range:
+25°F to +150°F (-5°C to +65°C)
Working pressures are at +68°F (+20°C). Higher
temperatures reduce the available working pressure. See
temperature/pressure chart on page 445.
Brand Method:
Black ink
Brand Example:
NEXSPRAY 600 BY PARKER NEXGEN
®
(P/N) (ID) X (OD)
MAX WP 600 PSI AT 68F (20C) CANADA (DATE CODE)
Industry Standards:
None applicable
Applications:
• Chemicals, herbicides, pesticides, water
• Agriculture, commercial lawn and garden
Vacuum:
Not recommended
Packaging:
Coils
WARNINGS!
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
Working pressures are at +68°F (+20°C). Higher temperatures reduce the available working pressure. See temperature/pressure chart on
page 445.
!
!
Part
Number
Color
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
Per Pkg
(lbs)
Approx
Wt
Per Pkg
(kgs)
Max
Rec WP
@ 68°F
(psi)
Max
Rec WP
@ 20°C
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
(USA)
268-06002300
Yellow 3/8 9.53 2 .635 16.1 35.00 15.88 600 41.4 *
300
N
268-06002400
Yellow 3/8 9.53 2 .635 16.1 46.00 20.87 600 41.4 *
400
N
268-06005300
Yellow 3/8 9.53 2 .635 16.1 35.00 15.88 600 41.4 *
300
N
268-08002300
Green 1/2 12.70 2 .790 20.1 50.00 22.68 600 41.4 *
300
N
268-08002400
Yellow 1/2 12.70 2 .790 20.1 67.00 30.39 600 41.4 *
400
N
268-08005300
Green 1/2 12.70 2 .790 20.1 50.00 22.68 600 41.4 *
300
N
268-08005400
Green 1/2 12.70 2 .790 20.1 67.00 30.39 600 41.4 *
400
N
* Couplings:
Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
!
!
