PVC
Fire Extinguisher and Booster Hose
UL92

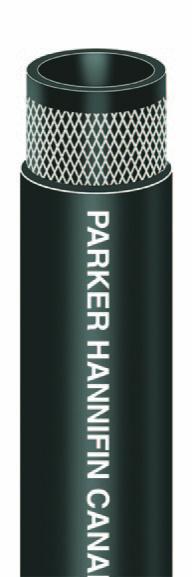

Series 167
Series 167 is a very fexible and kink resistant fre extinguisher hose. Te hose is
manufactured to close tolerances, eliminating the need for multiple coupling components
and reducing labor costs in high volume assembly operations. Te hose construction is
resistant to abrasion, ozone, ultraviolet light and weathering.
NOTE:Dimensions can be adjusted to acccommodate customer couplings. Contact
Parker.
Tube: Black blended PVC; 72A duromoter
Reinforcement: Multiple textile plies
Cover: Black blended PVC; UV resistant 72A durometer smooth fnish
Temp. Range: -65°F to +150°F (-54°C to +65°C)
Working pressures are at +68°F (+20°C). Higher temperatures reduce the
available working pressure. See temperature/pressure chart on page 445.
Brand Method: White ink
Brand Example: PARKER HANNIFIN CANADA (P/N) UL INC. ® LISTED FIRE EXT. &
BOOSTER HOSE EX5282 ISSUE 2052 MAX WP 250 PSI -54C (-65F)
(DATE CODE)
Design Factor: 4:1
Industry Standards: UL92
Applications: Portable fre extinguishers
Vacuum: Not recommended
Packaging: Per customer specifcations
WARNINGS!
„ Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
„ Working pressures are at +68°F (+20°C). Higher temperatures reduce the available working pressure. See temperature/pressure chart on
page 445.
!
!
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Max
Rec WP
@ 68°F
(psi)
Max
Rec WP
@ 20°C
(bar)
Stock
Status
**
(USA)
167-06008 3/8 9.5 2 .670 17.0 13.4 6.1 250 17.2 N
167-08008 1/2 12.7 2 .820 20.8 18.2 8.3 250 17.2 N
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
! !
