Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH
South Gate, CA
Eastern USA
Western USA
www.safehose.com
e-mail: indhose@parker.com
PVC
DYNAFLEX™

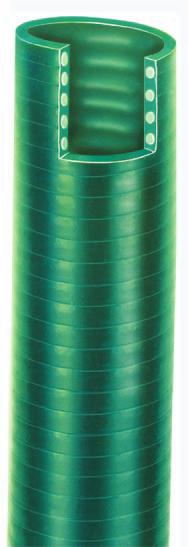

PVC Standard Duty Suction Hose
Series 7560
Series 7560 is a standard duty suction and discharge hose for dry abrasive materials such
as debris, granules, pellets and powders; mild chemicals; and water in a variety of transfer
applications. Te hose features a smooth tube that is abrasion resistant and and allows
full-fow. Te lightweight construction incorporates a white PVC helix that provides suction
capability and the cover is resistant to abrasion, mild chemicals, ultraviolet light and
weathering.
NOTE:
Do not use in applications where a static charge may develop unless externally
grounded.
Tube:
Green PVC, smooth fnish
Reinforcement:
White PVC helix
Cover:
Green PVC, smooth fnish
Temp. Range:
+23°F to +140°F (-5°C to +60°C)
Working pressures are at +68°F (+20°C). Higher temperatures reduce the
available working pressure. See temperature/pressure chart on page 445.
Brand Method:
Not branded
Design Factor:
3:1
Industry Standards:
None applicable
Applications:
• Abrasive materials, debris, mild chemicals, sewage, slurries, water
• Agriculture, construction, mining
Vacuum:
See below
Compare to:
Gates 100 GR; Kanafex 100 GR; Kuriyama G and J; Pacifc Echo 110,
113; Petzetakis 12500; Superfex 1000 GR
Packaging:
Coils
Part
Number
ID
(in)
ID
(mm)
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec WP
@ 68°F
(psi)
Max
Rec WP
@ 20°C
(bar)
Vacuum
Hg
(in)
Std
Pack
Qty
(ft)
Stock
Status
**
7560-750
3/4 19.1 1.000 25.4 0.20 0.09 3.5 88.9 120 8.3 22 100
Y
7560-1000
1 25.4 1.240 31.5 0.25 0.11 4.5 114.3 120 8.3 22 100
Y
7560-1250
1-1/4 31.8 1.530 38.9 0.32 0.15 5.7 144.8 120 8.3 22 100
Y
7560-1500
1-1/2 38.1 1.780 45.2 0.39 0.18 6.7 170.2 100 6.9 22 100
Y
7560-2000
2 50.8 2.320 58.9 0.57 0.26 9.0 228.6 95 6.6 22 100
Y
7560-2500
2-1/2 63.5 2.810 71.4 0.80 0.36 11.0 279.4 75 5.2 22 100
Y
7560-3000
3 76.2 3.430 87.1 1.05 0.48 14.0 355.6 65 4.5 22 100
Y
7560-4000
4 101.6 4.450 113.0 1.64 0.74 18.0 457.2 55 3.8 22 100
Y
7560-6000
6 152.4 6.600 167.6 3.08 1.40 30.0 762.0 40 2.8 22 100
Y
* Couplings:
Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
!
!
WARNINGS!
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
Working pressures are at +68°F (+20°C). Higher temperatures reduce the available working pressure. See temperature/pressure chart on
page 445.
!
!
