E-Z FORM™GS
General Service Hose
SAE J20R2-D1 Performance
Series 7395

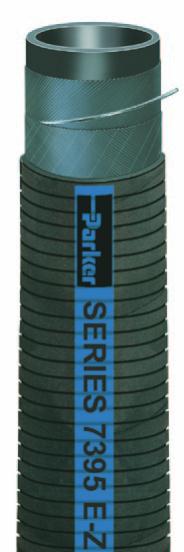

Series 7395 is an extremely fexible, lightweight low pressure hose designed to handle
air, coolant, mild chemicals and water. Te hose construction incorporates a tube that
is resistant to commonly used coolant mixtures, a wire helix that provides full suction/
vacuum capability and a path to conduct a static electrical charge to ground, and a cover
that is resistant to abrasion, mild chemicals, heat and ozone. Te unique Greek cover
corrugations are tightly pitched and precision-engineered, providing minimal force-to-bend,
superior kink resistance, and maximum fexibility for ease of handling. Series 7395 is capable
of being routed through confned spaces where formed hose might normally be required.
NOTES: • Do not drag across sharp edges or highly abrasive surfaces.
• For E-Z FORM™ oil resistant multipurpose hose, refer to Series 7219.
Tube: Black EPDM
Reinforcement: Multiple textile plies with wire helix
Cover: Black EPDM; Greek corrugated fnish
Temp. Range: -40°F to +257°F (-40°C to +125°C)
Brand Method: Black text on blue stripe
Brand Example: PARKER SERIES 7395 E-Z™ FORM GS HOSE 75 PSI MAX WP
Design Factor: 4:1
Industry Standards: SAE J20R2-D1 performance
Applications: • Air, coolant, mild chemicals, water
• Coolant systems, drain lines, vacuum service
• SAE-performance in engine coolant service, general industrial
Vacuum: Full
Packaging: Coils
(Continued on the following page)
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7395-0500025 1/2 12.7 2 0.906 23.0 0.23 0.10 1.4 35.6 75 5.2 HY 25 Y
7395-0500130 1/2 12.7 2 0.906 23.0 0.23 0.10 1.4 35.6 75 5.2 HY 130 N
7395-0594025 19/32 15.1 2 0.984 25.0 0.25 0.11 1.8 45.7 75 5.2 HY 25 N
7395-0594130 19/32 15.1 2 0.984 25.0 0.25 0.11 1.8 45.7 75 5.2 HY 130 N
7395-0625025 5/8 15.9 2 1.024 26.0 0.27 0.12 1.8 45.7 75 5.2 HY 25 Y
7395-0625130 5/8 15.9 2 1.024 26.0 0.27 0.12 1.8 45.7 75 5.2 HY 130 N
7395-0688025 11/16 17.5 2 1.102 28.0 0.29 0.13 1.8 45.7 75 5.2 * 25 N
7395-0688130 11/16 17.5 2 1.102 28.0 0.29 0.13 1.8 45.7 75 5.2 * 130 N
7395-0750025 3/4 19.1 2 1.142 29.0 0.31 0.14 2.0 50.8 75 5.2 HY 25 Y
7395-0750130 3/4 19.1 2 1.142 29.0 0.31 0.14 2.0 50.8 75 5.2 HY 130 N
7395-0813025 13/16 20.6 2 1.181 30.0 0.32 0.15 2.0 50.8 75 5.2 * 25 N
7395-0813130 13/16 20.6 2 1.181 30.0 0.32 0.15 2.0 50.8 75 5.2 * 130 N
7395-1000025 1 25.4 2 1.378 35.0 0.38 0.17 2.0 50.8 75 5.2 HY 25 Y
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
