294
Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH
South Gate, CA
Eastern USA
Western USA
www.safehose.com
e-mail: indhose@parker.com
Specialty
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7293-0500
1/2 12.7 4 0.992 25.2 0.38 0.17 3.5 88.9 500 34.5 *
100 Y
7293-0750
3/4 19.1 4 1.276 32.4 0.54 0.24 3.5 88.9 500 34.5 *
100 Y
7293-1000
1 25.4 4 1.528 38.8 0.68 0.31 4.5 114.3 500 34.5 7661 100 Y
7293-1250
1-1/4 31.8 4 1.930 49.0 1.08 0.49 5.0 127.0 500 34.5 *
100 Y
7293-1500
1-1/2 38.1 4 2.174 55.2 1.24 0.56 7.0 177.8 500 34.5 *
100 Y
7293-2000
2 50.8 4 2.764 70.2 1.69 0.77 14.0 355.6 500 34.5 7661 100 N
* Couplings:
Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.

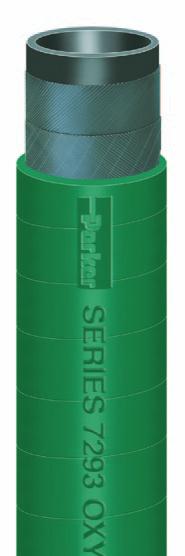

Oxygen Charging Hose
Series 7293
Series 7293 is designed for high pressure oxygen lancing and scarfng applications in
foundries and steel mills. Te hose construction incorporates fame and oil resistant tube
and cover compounds. Te green cover is resistant to abrasion and weathering, and color-
coded for easy and quick identifcation for oxygen service. Te tube is cleaned and the ends
are capped at the factory to prevent contamination. Series 7293 is available in 200-foot
continuous lengths.
Tube:
Black chloroprene
Reinforcement:
Multiple textile plies
Cover:
Green chloroprene; wrapped fnish
Temp. Range:
-22°F to +176°F (-30°C to +80°C)
Brand Method:
Embossed
Brand Example:
PARKER SERIES 7293 OXYGEN CHARGING 500 PSI MAX WP
MADE IN USA
Design Factor:
4:1
Industry Standards:
None applicable
Applications:
• High pressure oxygen
• Lancing, scarfng
• Foundries, steel mills
Vacuum:
Not recommended
Packaging:
Coils
WARNING!
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
