Specialty
Heavy Duty Fire Engine Suction Hose
NFPA 1901, 1962
Series LW701
CustomMade Hose

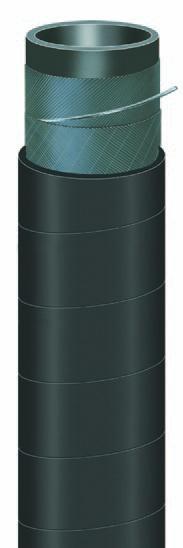

Series LW701 is a custommade, premium quality heavy duty fre engine suction hose
for remote water removal and hydrant connections on fre trucks. Te hose construction
incorporates a wire helix for full suction capability and kink resistance, and the SBR cover
is resistant to abrasion and ozone. Fire engine suction hose is primarily used in 10-foot
lengths; Series LW701 is available in specifed lengths to a maximum of 100 feet.
NOTE:For corrugated hose, refer to LW720. Other customized versions of this product are
available. Contact Parker.
Tube: Black SBR
Reinforcement: Multiple textile plies with wire helix
Cover: Black SBR; wrapped fnish
Temp. Range: -40°F to +180°F (-40°C to +82°C)
Brand Method: Not branded
Design Factor: 4:1
Industry Standards: NFPA 1901, 1962
Applications: • Water supply connection; remote water removal
• Fire suppression apparatus
Vacuum: Full
Packaging: Coils, lengths
Couplings: Soft cuffs per customer specifcations. Contact Parker.
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Max
Lg
(ft)
LW701-2500 2-1/2 63.5 2 3.125 79.4 1.60 0.73 15.0 381.0 150 10.3 100
LW701-3000 3 76.2 2 3.625 92.1 1.97 0.89 18.0 457.2 150 10.3 100
LW701-3500 3-1/2 88.9 2 4.125 104.8 2.27 1.03 21.0 533.4 150 10.3 100
LW701-4000 4 101.6 2 4.625 117.5 2.72 1.23 24.0 609.6 150 10.3 100
LW701-4500 4-1/2 114.3 3 5.125 130.2 3.70 1.68 27.0 685.8 150 10.3 100
LW701-5000 5 127.0 3 5.750 146.1 5.00 2.27 30.0 762.0 150 10.3 100
LW701-6000 6 152.4 3 6.750 171.5 5.93 2.69 36.0 914.4 150 10.3 100
