304
Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH
South Gate, CA
Eastern USA
Western USA
www.safehose.com
e-mail: indhose@parker.com
Specialty
ARMADA
®
Marine Multipurpose, Fuel Fill / Vent and
Hardwall Wet Exhaust Hose
ABYC, ISO, NMMA, SAE, USCG

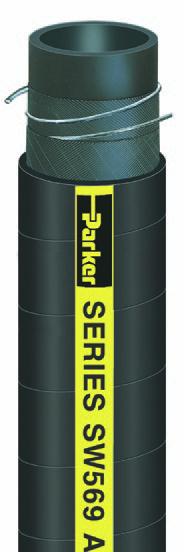

Series SW569
Series SW569 is an extremely versatile suction and discharge hose for diverse applications such
as bilge pump intake, discharge and ventilation; cabin heating; coolant and radiator service;
oil and fuel systems using biodiesel (to B100 in dedicated service), ethanol, and gasoline;
lubrication systems; wet exhaust systems; nonpotable water systems; and toilet and bath
connections. Series SW569 incorporates a dual wire helix that provides full suction capability,
fexibility and kink resistance, and the cover is resistant to oil and ozone. Te hose is available
in multiple incremental sizes for connection to various sizes of pipe used in the marine
industry.
NOTES:
• Refer to the table on pages 213-214 for fuel compatibility and service conditions.
• Do not use in applications requiring low-permeation fuel feed hose (SAE J1527 A1-15).
Tube:
Black nitrile
Reinforcement:
Multiple textile plies with dual wire helix
Cover:
Black chloroprene; wrapped fnish
Temp. Range:
-20°F to +212°F (-29°C to +100°C)
Brand Method:
Black text on yellow stripe
Brand Example:
PARKER SERIES SW569 ARMADA (ID) MARINE FUEL/WET EXHAUST HOSE
XX PSI WP MADE IN USA
Design Factor:
4:1
Industry Standards:
ABYC H-24; NMMA; SAE J1527 A1 and A2 Style R2; SAE J1942 Codes F,
VW, NVW; SAE J2006 R2; SAE J20R2 B; SAE J20R4 B; SAE J20R5 B;
SAE J30R5; ISO 7840 A1; ISO 8469 B1; USCG
Applications:
• Biodiesel (to B100 in dedicated service), diesel, ethanol, gasoline, oil
• Hot exhaust fumes, nonpotable water
• Marine coolant and fuel/vent systems,wet exhaust
Vacuum:
Full
Compare to:
Thermoid 7910 Bellowsfex A
Packaging:
Coils
(Continued on the following page)
WARNING!
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
