Air & Multipurpose
SUPER-FLEX® GS
General Service Air &Water Hose

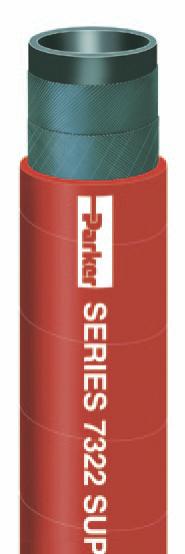

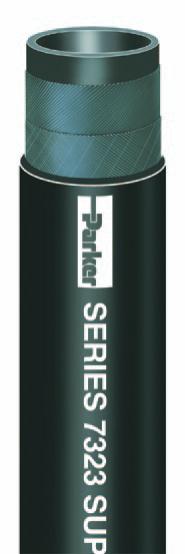

Series 7322 (Red) and Series 7323 (Black)
Series 7322/7323 is a versatile general purpose hose designed to handle air,
mild chemicals and water. Te hose incorporates a tube that is compatible
with light oil mists, and features a rigid mandrel construction that produces
a true round, concentric profle for superior coupling ft and retention. Te
cover is resistant to abrasion, heat and ozone.
NOTE: Do not with use with oil or refned fuel.
Tube: Black EPDM; ARPM Class C oil resistance
Reinforcement: Multiple textile plies
Cover: 7322: Red EPDM, wrapped fnish
7323: Black EPDM, wrapped fnish
Temp. Range: -40°F to +212°F (-40°C to +100°C)
Brand Method: 7322: White text on red stripe
7323: White text on black stripe
Brand Example: PARKER SERIES (7322) (7323) SUPER-FLEX® GS
200 PSI MAX WP GENERAL SERVICE MADE IN USA
Design Factor: 4:1
Vacuum: Not recommended
Industry Standards: ARPM Class C oil resistant tube
Applications: • Air (including oil mist), mild chemicals, water
• Agriculture, construction, general industrial
Compare to: Gates AdaptaFlex; Veyance Horizon
Packaging: Coils, reels (“A” part numbers)
Series 7322 (Red) and 7323 (Black)
Part
Number
7322 or 7323
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
7322
Stock
Status
**
7323
Stock
Status
**
-125200 1-1/4 31.8 2 1.741 44.2 0.71 0.32 7.5 190.5 200 13.8 43 200 Y Y
-12520050 1-1/4 31.8 2 1.741 44.2 0.71 0.32 7.5 190.5 200 13.8 43 50 Y N
-125200100 1-1/4 31.8 2 1.741 44.2 0.71 0.32 7.5 190.5 200 13.8 43 100 Y Y
-125200A 1-1/4 31.8 2 1.741 44.2 0.71 0.32 7.5 190.5 200 13.8 43 400 Y N
-150200 1-1/2 38.1 2 1.985 50.4 0.82 0.37 8.5 215.9 200 13.8 43 200 Y Y
-15020050 1-1/2 38.1 2 1.985 50.4 0.82 0.37 8.5 215.9 200 13.8 43 50 Y N
-150200100 1-1/2 38.1 2 1.985 50.4 0.82 0.37 8.5 215.9 200 13.8 43 100 Y Y
-150200A 1-1/2 38.1 2 1.985 50.4 0.82 0.37 8.5 215.9 200 13.8 43 400 Y Y
-200200 2 50.8 4 2.568 65.2 1.23 0.56 12.0 304.8 200 13.8 43 200 Y Y
-20020050 2 50.8 4 2.568 65.2 1.23 0.56 12.0 304.8 200 13.8 43 50 Y N
-200200100 2 50.8 4 2.568 65.2 1.23 0.56 12.0 304.8 200 13.8 43 100 Y Y
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
