332
Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH
South Gate, CA
Eastern USA
Western USA
www.safehose.com
e-mail: indhose@parker.com
Water
DAY-FLO
®

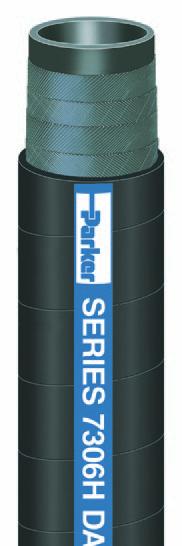

EPDM Heavy Duty Water Discharge Hose
Series 7306H
Series 7306H is a heavy duty discharge hose designed to handle alkalies, brine, glycols,
herbicides, mild chemicals, slurries and water. Te hose construction incorporates a heavy
wall and elevated working pressure for durability and superior service. Te EPDM cover is
resistant to abrasion, heat, mild chemicals and weathering. Series 7306H is available in
200-foot continuous lengths.
Tube:
Black EPDM
Reinforcement:
Multiple textile plies
Cover:
Black EPDM; wrapped fnish
Temp. Range:
-30°F to +212°F (-34°C to +100°C)
Brand Method:
White text on blue stripe
Brand Example:
PARKER SERIES 7306H DAY-FLO H.D. WATER DISCHARGE HOSE XXX
PSI MAX WP MADE IN USA 001 (LOT#)
Design Factor:
4:1
Industry Standards:
None applicable
Applications:
• Alkalies, brine, glycols, herbicides, mild chemicals, slurries, water
• Agriculture, construction, general industrial, irrigation, surface mining
Vacuum:
Not recommended
Compare to:
Kuriyama Heavy Water Discharge; Veyance Plicord HD Water Discharge
Packaging:
Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Perm
Cplg
Rec
*
Std Pack
Qty
(ft)
Stock
Status
**
7306H-1500
1-1/2 38.0
4 2.032 51.6 0.85 0.39 200 13.8
*
100
N
7306H-2000
2
50.8
4 2.536 64.4 1.10 0.50 200 13.8
*
100
Y
7306H-2500
2-1/2 63.5
4 3.050 77.4 1.34 0.61 200 13.8
*
100
Y
7306H-3000
3
76.2
4 3.550 90.1 1.59 0.72 200 13.8
*
100
N
7306H-4000
4 101.6 4 4.556 115.7 2.10 0.95 200 13.8
*
100
Y
7306H-5000
5 127.0 4 5.582 141.7 2.75 1.25 200 13.8
*
100
N
7306H-6000
6 152.4 4 6.646 168.8 3.30 1.50 200 13.8
*
100
Y
7306H-8000
8 203.2 4 8.644 219.6 4.35 1.97 200 13.8
*
100
N
7306H-10000
10 254.0 4 10.646 270.4 5.40 2.45 150 10.3
*
50
N
* Couplings:
Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING!
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
