Water
High Pressure Water Jetting Hose

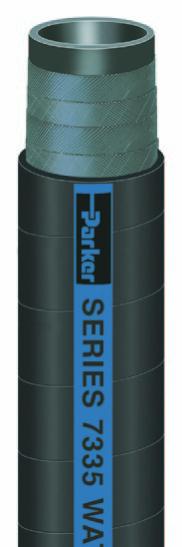

Series 7335
Series 7335 is a standard duty jetting hose designed to handle slurries and water. Te
hose construction provides high pressure, high volume fow for cleanup and washdown
applications. Te SBR cover is resistant to abrasion and weathering. Series 7335 is available
in 200-foot continuous lengths.
Tube: Black SBR
Reinforcement: Multiple textile plies
Cover: Black SBR; wrapped fnish
Temp. Range: -40°F to +180°F (-40°C to +82°C)
Brand Method: Black text on blue stripe
Brand Example: PARKER SERIES 7335 WATER JETTING HOSE
500 PSI MAX WP MADE IN USA (LOT#)
Design Factor: 4:1
Industry Standards: None applicable
Applications: • Slurries, water
• Cable cover, cleaning, stripping, washdown
• Construction, general industrial, oil feld, shipyards
Vacuum: Not recommended
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Perm
Cplg
Rec
*
Std Pack
Qty
(ft)
Stock
Status
**
7335-1250 1-1/4 31.8 2 1.750 44.0 0.58 0.26 500 34.5 * 100 N
7335-1500 1-1/2 38.1 2 2.008 51.0 0.68 0.31 500 34.5 * 100 N
7335-2000 2 50.8 4 2.637 67.0 1.11 0.50 500 34.5 * 100 N
7335-2500 2-1/2 63.5 4 3.165 80.4 1.43 0.65 500 34.5 * 100 N
7335-3000 3 76.2 4 3.736 94.9 1.83 0.83 500 34.5 * 100 N
7335-4000 4 101.6 6 4.898 124.4 2.90 1.32 500 34.5 * 100 Y
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
