Water
PWD™

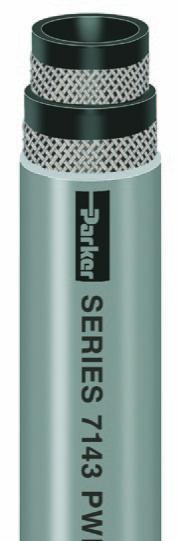

High Pressure Washdown Hose
Series 7143
Series 7143 is a fexible, high pressure, high temperature hose for hot water and mild
chemicals in cleaning and washdown applications. Te hose construction incorporates
textile braided reinforcement for kink resistance and superior coupling retention. Te non-
marking cover is resistant to abrasion, heat, and fatty, oily foods. Te multiple cover colors
provide color-coded identifcation.
NOTE:
Do not use for steam service.
Tube:
Black EPDM
Reinforcement:
Multiple textile braids
Cover:
Black (BK), Gray (GY), Yellow (YL) EPDM; smooth fnish
Temp. Range:
-40°F to +250°F (-40°C to +121°C)
Brand Method:
Black ink on gray and yellow hose; white ink on black hose
Brand Example:
PARKER SERIES 7143 PWD (ID) XXXX PSI MAX WP MADE IN USA
(DATE CODE)
Design Factor:
3.5:1
Industry Standards:
None applicable
Applications:
• Hot water, mild chemicals
• Breweries, dairies, food/poultry processing plants, general industrial
Vacuum:
Not recommended
Compare to:
Boston Washdown 1250; Gates Cyclone; Veyance Fortress
Packaging:
Reels
Part
Number
ID
(in)
ID
(mm)
Reinf
Braids
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7143-382BK
3/8 9.5 2 0.734 18.6 0.20 0.09 4.0 101.6 1500 103.4 HY 700 N
7143-382GY
3/8 9.5 2 0.734 18.6 0.20 0.09 4.0 101.6 1500 103.4 HY 700
Y
7143-382YL
3/8 9.5 2 0.734 18.6 0.20 0.09 4.0 101.6 1500 103.4 HY 700 N
* Couplings:
Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING!
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
Other cover colors
available:
BK = BLACK
YL = YELLOW
