350
Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH
South Gate, CA
Eastern USA
Western USA
www.safehose.com
e-mail: indhose@parker.com
Water
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7186-501
1/2 12.7 2 0.781 19.8 0.17 0.08 6.0 152.4 125 8.6 *
500
Y
7186-501050
1/2 12.7 2 0.781 19.8 0.17 0.08 6.0 152.4 125 8.6 *
5 x 50 N
7186-631
5/8 15.9 2 0.906 23.0 0.20 0.09 8.0 203.2 90 6.2 *
500
Y
7186-631050
5/8 15.9 2 0.906 23.0 0.20 0.09 8.0 203.2 90 6.2 *
5 x 50 Y
7186-751
3/4 19.1 2 1.032 26.2 0.24 0.11 9.0 228.6 70 4.8 *
500
Y
7186-751050
3/4 19.1 2 1.032 26.2 0.24 0.11 9.0 228.6 70 4.8 *
5 x 50 N
* Couplings:
Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.

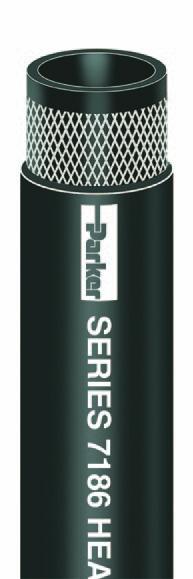

Heater Hose
Series 7186
Series 7186 is a fexible, lightweight coolant/heater/water hose for standard duty service.
Te EPDM construction is resistant to abrasion, mild chemicals and weathering.
Tube:
Black EPDM
Reinforcement:
Multiple textile plies
Cover:
Black EPDM; smooth fnish
Temp. Range:
-40°F to +212°F (-40°C to +100°C)
Brand Method:
White ink
Brand Example:
PARKER SERIES 7186 HEATER HOSE (ID) MADE IN USA
Design Factor:
4:1
Industry Standards:
None applicable
Applications:
• Coolant, hot water, mild chemicals
• Industrial and vehicle coolant systems; low pressure drain line
• Agriculture, construction, general industrial, transportation
Vacuum:
Not recommended
Compare to:
Thermoid Black Standard Heater
Packaging:
Reels, cartons
WARNING!
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
