E-Z FORM™GS
General Service Hose
SAE J20R2-D1 Performance
Series 7395

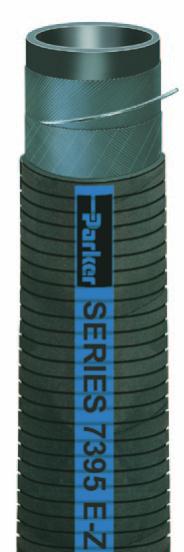

Series 7395 is an extremely fexible, lightweight low pressure hose designed to handle
air, coolant, mild chemicals and water. Te hose construction incorporates a tube that
is resistant to commonly used coolant mixtures, a wire helix that provides full suction/
vacuum capability and a path to conduct a static electrical charge to ground, and a cover
that is resistant to abrasion, mild chemicals, heat and ozone. Te unique Greek cover
corrugations are tightly pitched and precision-engineered, providing minimal force-to-bend,
superior kink resistance, and maximum fexibility for ease of handling. Series 7395 is capable
of being routed through confned spaces where formed hose might normally be required.
NOTES:
• Do not drag across sharp edges or highly abrasive surfaces.
• For E-Z FORM
oil resistant multipurpose hose, refer to Series 7219.
Tube:
Black EPDM
Reinforcement:
Multiple textile plies with wire helix
Cover:
Black EPDM; Greek corrugated fnish
Temp. Range:
-40°F to +257°F (-40°C to +125°C)
Brand Method:
Black text on blue stripe
Brand Example:
PARKER SERIES 7395 E-Z™ FORM GS HOSE 75 PSI MAX WP
Design Factor:
4:1
Industry Standards:
SAE J20R2-D1 performance
Applications:
• Air, coolant, mild chemicals, water
• Coolant systems, drain lines, vacuum service
• SAE-performance in engine coolant service, general industrial
Vacuum:
Full
Packaging:
Coils
