Chemical
WARNINGS!
It is the responsibility of the user to determine if the hose is suitable for the application. Most chemical resistance guides are based on
temperatures of 70°F (21°C). Elevated temperatures can change the chemical resistance ratings. Many chemicals will become more
aggressive as temperatures increase, reducing the ability of hose compounds to withstand them. Contact Parker for chemical compatibility
data at elevated temperatures. If no data exists, users are required to perform compatibility testing at the desired temperature.
At operating temperatures of 125°F and above, only permanently attached couplings should be installed. At any operating temperature,
couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
Do not use with internally expanded couplings. Refer to chemical hoses that incorporate a MXLPE tube.
!

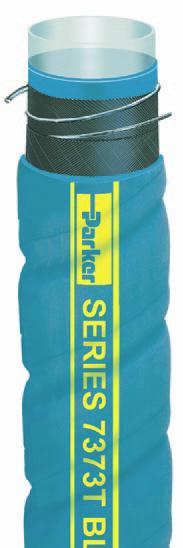

BLUE THUNDER
®
UHMWPE Chemical Hose
Series 7373T
Series 7373T is a high pressure, high temperature suction and discharge hose designed to
handle approximately 98% of commonly used acids, chemicals and solvents. Te ultra high
molecular weight polyethylene (UHMWPE) tube will not leach into and contaminate the
product being conveyed, and features a temperature rating to 250°F (121°C). Te corrugated
hose construction incorporates a dual wire helix that provides full suction capability, kink
resistance, fexibility for ease of handling, and a path to conduct a static electrical charge
to ground. Te cover is resistant to abrasion, mild chemicals and ozone. Series 7373T is
available in 200-foot continuous lengths.
NOTE:
Refer to the Safety and Technical section of this catalog for safety, handling and
use information. Refer to the Chemical Guide section of this catalog to determine
compatibility with specifc chemicals. Contact Parker for additional chemical
compatibility information.
Tube:
Translucent ultra high molecular weight polyethylene (UHMWPE)
Reinforcement:
Multiple textile plies with dual wire helix
Cover:
Blue EPDM; corrugated wrapped fnish
Temp. Range:
-40°F to +250°F (-40°C to +121°C)
Brand Method:
Yellow text on blue stripe
Brand Example:
PARKER SERIES 7373T BLUE THUNDER
®
UHMWPE TUBE MAX WP
200 PSI MADE IN USA (LOT#)
Design Factor:
4:1
Industry Standards:
None applicable
Applications:
• Acid, chemicals, solvents
• In-plant and storage tank transfer
• Delivery, transport
Vacuum:
Full
Compare to:
Boston Chemcat; Gates Renegade; Veyance Fabchem
Packaging:
Coils
(Continued on the following page)
